Lenovo IdeaPad Z570 Disc Drive Replacement

Geschrieben von: Daniel Lopes
  • Kommentare: 0
Lenovo IdeaPad Z570 Disc Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

5 Minuten

Einleitung

Before preceding with this guide make sure to remove the battery. Also make sure to be in an open space with ample desktop space when proceeding.

  1. oTMJWe62XiSRcHR6

    • Place the laptop face down with the battery facing away from you

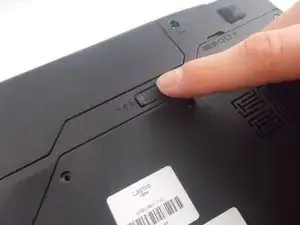

  2. QngAM5N2HKvhWIdI

    • Flip the right switch right-bound

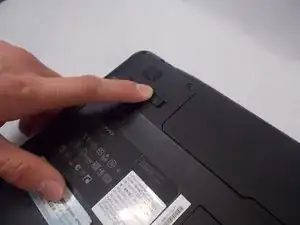

  3. RQwIQekuNZMlXC3R

    • Hold the left switch.

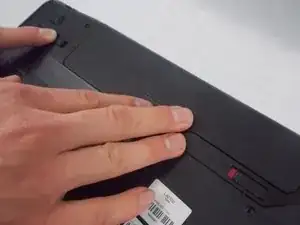

  4. UaadMOFfVItaVQOv
    UaadMOFfVItaVQOv

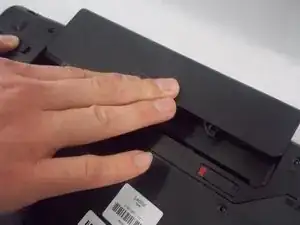

    pGWIBRTtLbTnSUul

    • Push the battery forward lightly to remove it while holding the left switch.

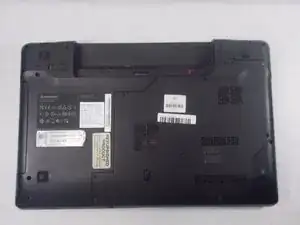

  5. jVJeqIDiS3yFLdX4

    • Place the laptop face down with the battery slot facing away from you.

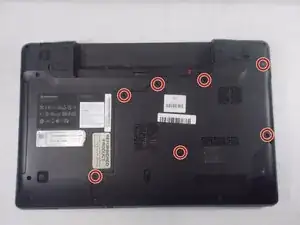

  6. aGSMBWmIiT1sR1Do
    aGSMBWmIiT1sR1Do

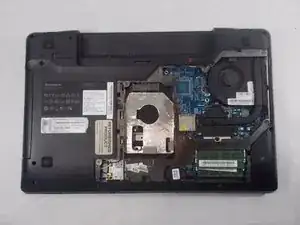

    fGRX3cfbgVIUke5O

    • Loosen all seven 3mm screws from the back panel using a Phillips #0 screwdriver.

    • These screws cannot be removed from the device.

    • Remove the back panel from the device.

  7. yQTBvdKPMiusSrmu
    yQTBvdKPMiusSrmu

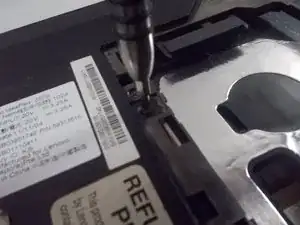

    2JZFkBAAPlcoBQIF

    • Remove the 3 mm Phillips #0 screw located on the left hand side that holds the disc drive in place.

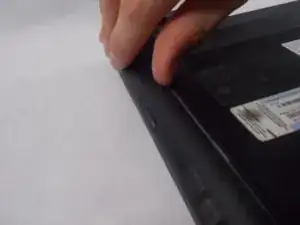

  8. iZfiIf1XCDsP23EO
    iZfiIf1XCDsP23EO
    JEYiXKLguJfAFf1k

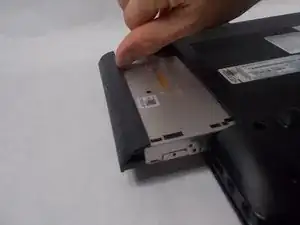

    • Gently remove the disc drive from the left hand side of the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
