Lenovo IdeaPad Z570 Keyboard Replacement

Geschrieben von: Mya DeSantos

Kommentare: 0

Lenovo IdeaPad Z570 Keyboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

15 Minuten

Einleitung

In order to proceed with this guide, you should know that the laptop must not be plugged in for safety reasons. The laptop should also be powered off and the battery drained. Once completed, safely dispose of the old keyboard.

Werkzeuge

Schritt 1

Place the laptop face down with the battery facing away from you

Schritt 2

Flip the right switch right-bound

Schritt 3

Hold the left switch.

Schritt 4

Push the battery forward lightly to remove it while holding the left switch.

Schritt 5

Place the laptop face down with the battery slot facing away from you.

Schritt 6

Loosen all seven 3mm screws from the back panel using a Phillips #0 screwdriver.
These screws cannot be removed from the device.
Remove the back panel from the device.

Schritt 7

Remove the 3 mm Phillips #0 screw located on the left hand side that holds the disc drive in place.

Schritt 8

Gently remove the disc drive from the left hand side of the laptop.

Schritt 9

Remove the three 12mm screws found near these symbols with a Phillips #0 screwdriver.

Schritt 10

Orient the laptop at a 90 degree angle with the keyboard being vertical and the screen horizontal to the surface you are working on.

Schritt 11

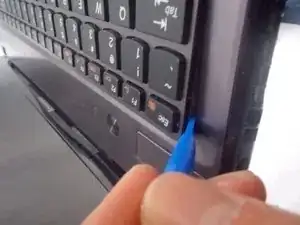

Pry the keyboard off staring from the corner where the “esc”” key is located using an opening tool.
Now orient the laptop in the standard position and take off the keyboard.
