Einleitung
Here are some easy to follow steps on how to replace your tablet's power and volume buttons.
Werkzeuge
-
-
Locate the small tab, marked with the lock symbol on the upper right hand of your IdeaTab above the volume control buttons. Use your fingernail to gently loosen this tab.
-
Use your Phillips #000 screwdriver and remove the 3.5mm screw and put it aside.
-

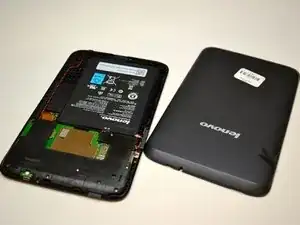

Using your blue, plastic opening tool, begin to gently pry the back panel away from the front panel starting by where the screw was.
-
-
-
Locate the volume control button on the right hand side of the tablet.
-

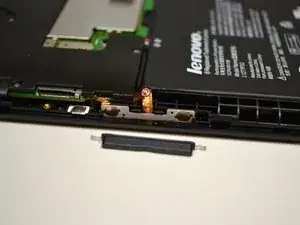

Now, gently slide the volume button upward to remove.
-
-
-
Locate the black back plate, above the battery.
-

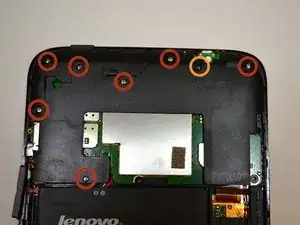

Using a Phillips #000 screwdriver remove the 7 silver 3.5mm screws from the back plate.
-
Next with the same screwdriver remove the black 4.1mm screw.
-
Gently remove the back plate from the device.
-
-
-

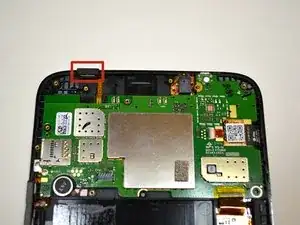

Locate the power button on the top right hand corner of your device.
-

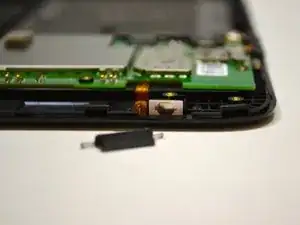

Gently slide the button up to remove.
-
To reassemble your device, follow these instructions in reverse order.
