Lenovo IdeaTab A2109 WIFI/GPS Antenna Replacement

Geschrieben von: Bcohen
  • Kommentare: 3
Lenovo IdeaTab A2109 WIFI/GPS Antenna Replacement

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

Keine Schätzung

Einleitung

Use this guide to replace the WIFI/GPS antenna

  1. HhveJDAeOXSiQoNa

    • Look at the back of the tablet and locate the speakers on top of the rear cover.

    • There is a smaller indentation in the plastic cover that runs across the top of the device.

    • Wedge the plastic opening tool, under the middle of the cover as shown, then push up and the cover will pop off.

    I just want to find out if my sd card is stuck inside how do I remove it without damaging the tablet.

    Tom Mukotora -

  2. QbGg4qsEDU2ZZepj
    QbGg4qsEDU2ZZepj
    MjQWXfTsiLvZGIkP

    • Remove SD card if present.

    • Remove two black 3mm Phillips #00 screws.

  3. atQRWMsJDJifCWSJ
    atQRWMsJDJifCWSJ
    m1ulVXTwwZYNK3RT

    • Disconnect battery power connector by pinching the connector with tweezers, and sliding it out of the housing.

  4. PHYTJMU4wcOYsBPO
    PHYTJMU4wcOYsBPO
    HQGnoQdt3AuGQT6D

    • Remove seven black 3mm Phillips #00 screws.

    • The top right corner screw is underneath a yellow ribbon. Lift the ribbon up without disconnecting it and unscrew the screw.

  5. 4EHrOWVduVYvfA2U
    4EHrOWVduVYvfA2U
    BNrmJ5mIaxYCfuEJ

    • Now you can take the battery out in order to either replace it or continue disassembling the device.

    Fantastic advice. After being told by Lenovo I needed to shell out £110 for a new mobo when it just had a charging socket issue I took it upon myself to see if I could fix it. This website helped take it apart and I found that the charging socket is just a micro daughter-board.

    If you have a problem with charging then go to http://www.replacebase.co.uk and search for Lenovo A2109A. They have all the parts.

    I replaced the daughter board and battery for about £10 incl del. Parts arrived yesterday and I have fitted. Works a treat. Not sure what amazes me the most, the low cost of the parts and excellent service by replacebase or the fact Lenovo tried to rip me off.

    These instructions are spot on.

    Well done

    Goon'

    Andy Blunn -

  6. FHVlxFOkSPsoIAYG
    FHVlxFOkSPsoIAYG
    LdLuBCmqWwabEUOw
    qRGKLRrFkgCQtwXD

    • Remove two black 3mm Phillips #00 screws.

    • Remove three silver 1.8 mm Phillips #00 screws.

    You can skip step 8 and step 10, leave these connectors in place (just remove the speaker connector in step 9) lift board enough to remove I/O board and leave most connectors in place.

    green1eng -

  7. qT3vyhjERKaLf5hb
    qT3vyhjERKaLf5hb
    IqhCMWwe4ubwRBhh
    FLMYRGDlWQtRwsPO

    • Use tweezers to flip up the small black plastic locks on all four connections.

    • Carefully remove each of the exposed ribbons.

  8. QwpjpGxEDiSaojvT
    QwpjpGxEDiSaojvT
    3KRFyQCPOXOs4G4D

    • Disconnect the two speaker connectors by pinching them with tweezers and sliding them out from the system board housing.

  9. wWHBiHB2S4vVXL4t
    wWHBiHB2S4vVXL4t
    fCAnBoSReOQQcspF

    • Use tweezers or your finger nail to disconnect the camera attachment by flipping up the black rectangular connector.

  10. WSG2pOeLc2F3JR5Y
    WSG2pOeLc2F3JR5Y
    fK4rbkvFaxfq5ICY
    GeDjpViYjKKrIeuH

    • Disconnect the HDMI connection with the system board

    • Use a plastic opening tool to pry up the system board, and you will hear a pop as it comes free.

    • Slide out the system board from its housing tab on the upper right corner.

    • Pull the board slowly away from the tab, and it will pop out.

  11. DAIMjQULo5ggMXrH

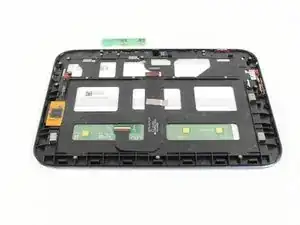

    • Once the system board has been removed, you can access the WIFI/GPS antenna.

  12. 3NWpR4CCs21n1ejm
    3NWpR4CCs21n1ejm
    xaHqCl1vPjNcjet2
    n52KbGmrju1jjDBB

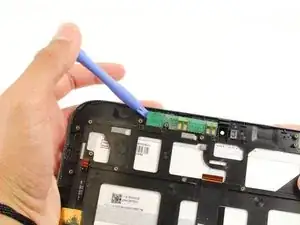

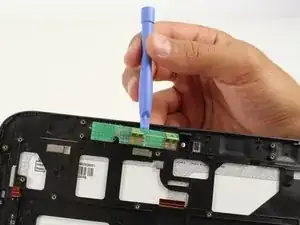

    • Insert the blue prying tool at the corner of the antenna. Pry up slowly, and move it across the antenna.

    • There is an adhesive holding the antenna in place, so it may take a little bit of force and movement to take off the antenna.

    • The antenna falls out easily once fully pried out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
