Einleitung
A faulty system board can lead to a myriad of performance issues.
In this guide we will remove:
- System Board
Werkzeuge
-
-
Place the tablet on its screen and use the opening tool to remove the back cover.
-
With the tool, place slight pressure on the tablet to pry the back panel off.
-
-
-

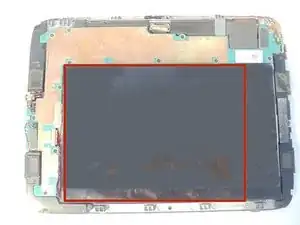

Grab the battery and gently lift upwards. This will show a red and black coiled wire.
-
Pull the battery gently until the cord has no slack.
-
-
-
Carefully hold the battery in one hand while your other hand's index finger and thumb grab the two wires nearest to their connection point.
-
Use your fingers to give a firm tug to the black and red wires, but do not yank them hard enough to damage the tablet.
-
Remove the battery from the device.
-
-
-

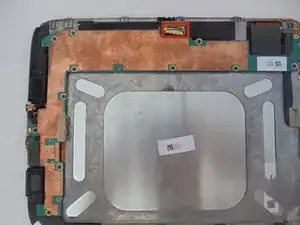

Locate the long, L-shaped system board; copper foil runs most of its length.
-

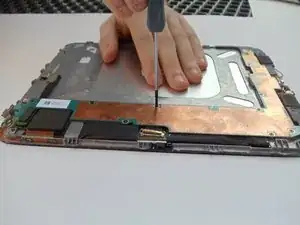

Remove the 10 2mm PH00 black screws located on the edges of the system board using a PH00 Screwdriver.
-
-
-

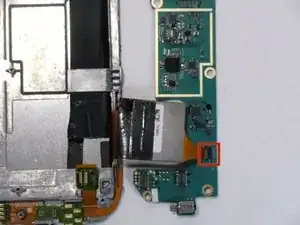

First Disconnect the gold connector by lifting the latch on it up and pulling it loose using the latch to pull.
-
-
-
As you lift the board up you will notice two more connections, one near the power switch and one on the I/O Panel.
-

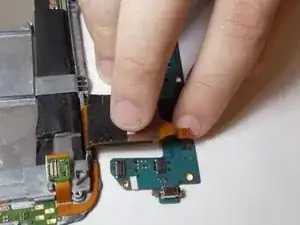

Remove each one with a minimal amount of upward pulling force as you flip the board over.
-
-
-
To disconnect the system board there is one last connection.
-
Lift up the back latch on this connection and the orange ribbon should slide right out without any effort thus disconnecting the board.
-
To reassemble your device, follow these instructions in reverse order.
don’t forget the screws under the speaker grills. if you do it will break the back were they are going through to hold. There are 4 very small screws under the speaker covers.
