Lenovo IdeaTab S6000 Vibration Motor Replacement

Geschrieben von: Gabriel Delgado
  • Kommentare: 1
Lenovo IdeaTab S6000 Vibration Motor Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

10 Minuten

Einleitung

The following guide details the necessary steps that you have to follow in order to replace the vibration motor for the Lenovo IdeaTab S6000.

  1. PsUJfLXuNB1vCknu

    • Remove the speaker screens by working them loose with a plastic opening tool. You may need to first loosen them with tweezers or a craft knife.

    • These screens are held in place by glue that is hard to remove. Please take your time to ensure that that this step is done correctly.

    I little bit of heat goes a long way when taking off the speaker screens.

    Ben Meinhart -

  2. iVfVDxnYOKkoPuBX

    • Remove the screws from both of the spots that were covered.

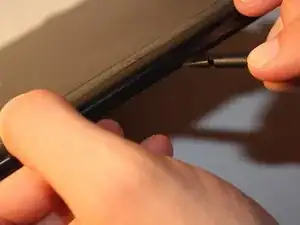

  3. dCtAIW4dGgVEkAtn

    • DO NOT USE A METAL TOOL FOR THIS.

    • Go all around the casing, prying the screen away from the backing with the spudger.

    • It will make a popping sound each time one of the lock tabs is disconnected.

    • Take your time as you move all around the device when prying the backing off.

  4. D3JPUggmKoY6psgv

    • Pull off the plastic that is covering the battery cable.

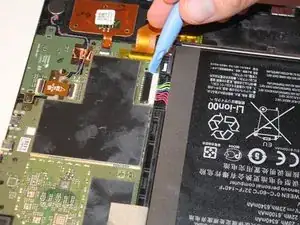

  5. 2B6VZHmrTEb242v6
    2B6VZHmrTEb242v6

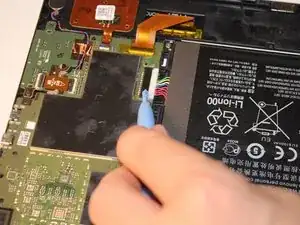

    ZBcIKU6YeU6qnVc2

    • Using either the plastic opening tool or your fingers, gently pull on both sides of the plug to release it.

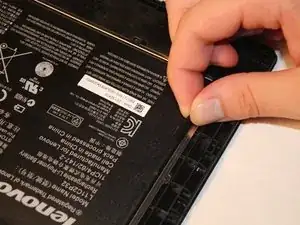

  6. rPT5qVMRWKvWCZGL

    • Remove the battery by grabbing the tab shown and pulling up.

    • The battery is held to the device by adhesive. Pull the battery up from the tab and it will lift out with a bit of effort.

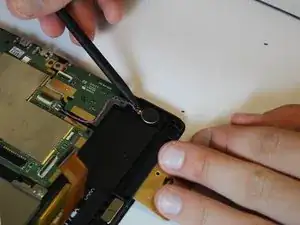

  7. sBQGINmrnfe2FJVx

    • Use the spudger to pry up the vibration motor.

Abschluss

To reassemble your device, follow these instructions in reverse order.
