Lenovo Ideapad 120s-14IAP Touchpad Replacement

Geschrieben von: Nathaniel Lott
  • Kommentare: 1
Lenovo Ideapad 120s-14IAP Touchpad Replacement

Schwierigkeitsgrad

Moderate

Schritte

13

Zeitaufwand

30 Minuten

Einleitung

This guide will assist you in removing and replacing the touchpad for the Lenovo Ideapad 120s-14IAP. The touch pad is a common issue with this model, and will fix problems with a mouse pointer that will not move or becomes jumpy on the screen.

  1. GOPrSGTtFlw1yyZG

    • Be sure to power off and unplug your device before you begin your repair.

    • Orient the laptop so the top is laying flat on your work surface.

    • Remove ten 1.5mm Torx T5 screws from the back of the laptop.

  2. k6NC2XATpXpJjKM1

    • Insert the plastic opening tool or a Jimmy along the edge of the back cover and gently pry.

    • Run the tool all the way around the edge of the back cover and remove the back cover once it is no longer secure.

    • Remove the back cover.

  3. txbOG11sSx3HSePy
    txbOG11sSx3HSePy
    vhnVAuroblyNKUvM

    • Use a spudger to lift the black fastener and disconnect the ribbon cable from the USB daughterboard.

  4. ogBkCyfO43FgSHHd

    • Using tweezers, disconnect the speaker on the left from the USB daugterboard.

    • Remove two 2.5 mm Phillips #0 screws from the daughterboard.

    • Remove the daughterboard from the laptop.

  5. rKcD46f1fTdxQQ4y
    rKcD46f1fTdxQQ4y
    xrgsKCjlDxHvCkUd
    GFFpH3ZILqKEhZto

    • Using a spudger, disconnect the keyboard ribbon cable from the motherboard.

    • Pull on the plastic film to remove the display connection cable.

    Remove extra ribbon cable (touchpad??) to the right of the keyboard as well.

    n robts -

  6. q55TB6Grtu5grQJG

    • Using tweezers, disconnect the connections for the right speaker.

    • Using tweezers, disconnect the connections for the battery.

    • Using tweezers, disconnect the connections for the CMOS battery.

  7. vsRYZUilRmtjWaYc

    • Remove the wireless card by disconnecting the two antenna cables and removing the 2.5 mm Phillips #0 screw.

  8. 1veDWlVW3JsiUyau
    1veDWlVW3JsiUyau
    ADoLTX3HLiiBMXjt

    • Remove seven 2.5 mm Phillips #0 screws from the motherboard.

    • Slide the motherboard out of the laptop chassis.

  9. nVBGUZnJlfnBn2l5
    nVBGUZnJlfnBn2l5
    qelk6vAVosku1IAC

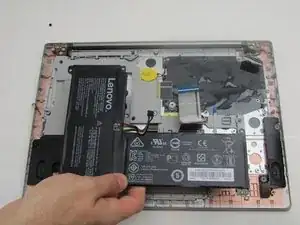

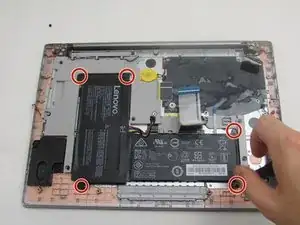

    • Remove five 2.5 mm Phillips #0 screws from around the battery.

    • Lift the battery out of the laptop.

  10. T6hLf1rEcuUwQS6X
    T6hLf1rEcuUwQS6X
    MJAINXFj1gmRElj2

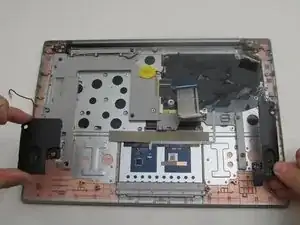

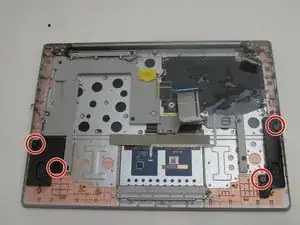

    • Remove four 2.0 mm Phillips #0 screws from the speaker assemblies.

    • The speakers can now be lifted up.

  11. NGtidLx6XGdjgiot
    NGtidLx6XGdjgiot
    4A2tLgKRNLYgsfNA

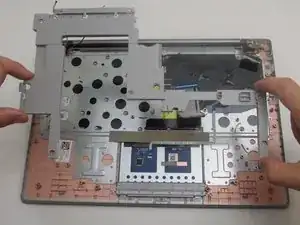

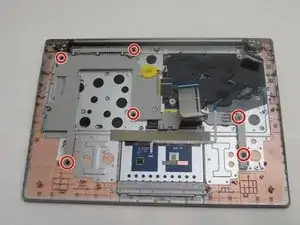

    • Remove six 2.5 mm Phillips #0 screws from the battery bracket.

    • Lift the battery bracket out of the laptop.

  12. xMQWWXNKG5OksBdD
    xMQWWXNKG5OksBdD
    o3TYJVUvfIQO4sdR

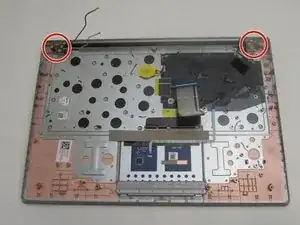

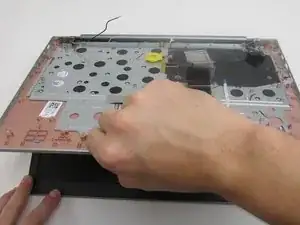

    • Remove six 5.0 mm Phillips #0 screws from the screen hinges.

    • You can now lift the bottom cover and separate each half of the laptop.

  13. ofYFFlgNdC2lkvRG
    ofYFFlgNdC2lkvRG
    FRZ5DlTMbsg6pShu
    fvGXP2gIIYb6pcUR

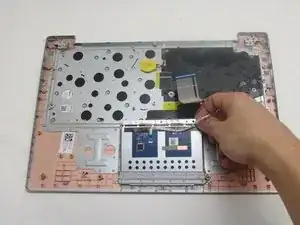

    • The touchpad retention screws are hidden beneath a strip of adhesive. Gently peel the adhesive away to access them.

    • Remove three 2.0 mm Phillips #0 screws from the touchpad retention bracket.

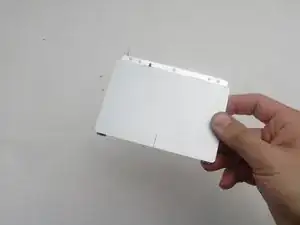

    • The touchpad now slides up and can be removed.

Abschluss

To reassemble your device, follow these instructions in reverse order.
