Lenovo Ideapad 310-15IKB Fan Replacement

Geschrieben von: Sergio Burchell
  • Kommentare: 0
Lenovo Ideapad 310-15IKB Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

15 Minuten

Einleitung

In this short guide, guidance will be provided on replacing the fan in the Lenovo 310-15IKB Laptop., in case it is damaged for is simply non-functional.

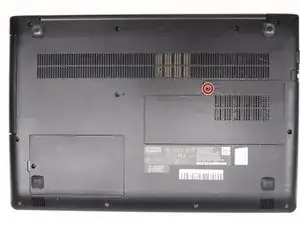

  1. f3mO2bggrGtONNIS

    • Flip the laptop over so the back panel is facing up.

    • Remove the single 6 mm screw from the L-shaped panel using a Phillips #0 screwdriver.

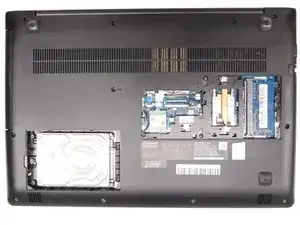

  2. FR1jiYhvY2hDoQYv

    • Remove the panel from the laptop.

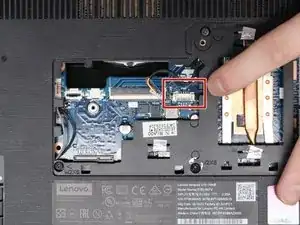

  3. JHYLGOA54RcCrXKT

    • Gently unplug the connector for the fan from the underside by pulling it gently.

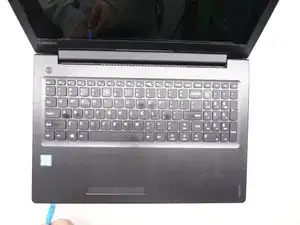

  4. 2WVy5NMoxkyFKITQ

    • Flip the laptop upright and open it with the screen facing you.

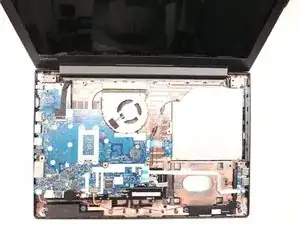

  5. YODndWJZCGLwGvPk

    • Use an opening tool to remove the keyboard cover panel, exposing the motherboard and fan.

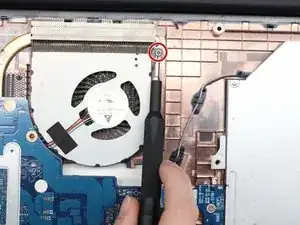

  6. ywvWMdQYoVj516kt

    • Remove the single 3 mm screw holding the fan in place using a Phillips #0 screwdriver.

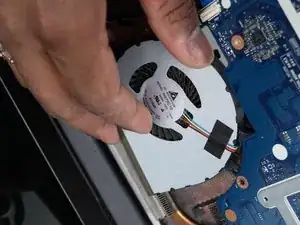

  7. Le3HiXrDBbbaEWSI

    • Remove the fan by pulling it away from the motherboard and then upwards out of the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order. Be careful to align the fan screw holes in place.
