Lenovo Ideapad 310-15IKB Wi-Fi Card Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

7 Minuten

Einleitung

This guide will show you how to replace the Wi-Fi card in the Lenovo Ideapad 310-15IKB. This should only take around 7 minutes to do and it is very simple. You will only need a number 0 Phillips head screw driver and a spudger.

  1. PVbKHeXpRGysjy22

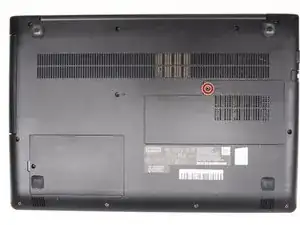

    • Flip the laptop over so the back panel is facing up.

    • Remove the single 6 mm screw from the L-shaped panel using a Phillips #0 screwdriver.

  2. lsBWTjjxrwLJPuOt

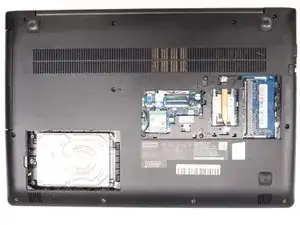

    • Remove the panel from the laptop.

  3. 4SlfGJsAuadD4dOc

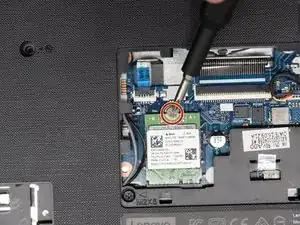

    • Remove the single 3 mm screw holding down the Wi-Fi card using a Phillips #0 screwdriver.

  4. Aq6aIBWBjyGY2xRW
    Aq6aIBWBjyGY2xRW
    UVbgNcJHCXq3L4KJ

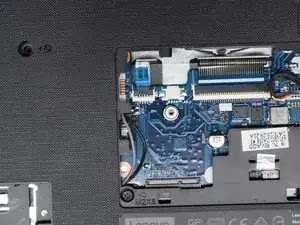

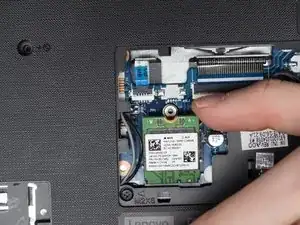

    • Gently lift and disconnect the Wi-Fi card from the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
