Lenovo Ideapad 320-15ABR Hard Drive Replacement

Geschrieben von: Anurag Deb
  • Kommentare: 5
Lenovo Ideapad 320-15ABR Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

10 - 15 Minuten

Einleitung

This guide will show you how to remove and replace the hard drive for the device.

Before you start replacing the hard drive, make sure to turn the device off, remove the battery and disconnect the laptop from any power source.

  1. i2OWcAbPmAGRGSND

    • Before you proceed, make sure your computer is turned off and is not connected to any power source.

    • Remove the single 7 mm Phillips #1 screw securing the optical drive.

    • Be sure to store the screws carefully as they are easy to lose. A magnetic project mat is recommended

  2. 5efQEBK35P4UNvZ5
    5efQEBK35P4UNvZ5
    krNoDHkMRA2ZJSfv
    wA11hPLxZRoSWDMV

    • Carefully remove the optical drive bracket by pulling the bezel away from the laptop.

  3. QafRtKMYGCtUPJge
    QafRtKMYGCtUPJge
    6osb1LdBNDTvFmny

    • Using the Phillips #1 screwdriver, remove the twelve screws around the back panel from the laptop.

  4. eOGgCw42XoGhIWWw
    eOGgCw42XoGhIWWw
    QQKRGI4YpPJcKhMW
    FsKr6Q66LBahhyIi

    • Use an opening tool to pry out the back cover.

  5. AJC2jGAuHabCs2Kg
    AJC2jGAuHabCs2Kg
    kc3iNKCr1JJXLvNg
    bkQYfatVYgex51Py

    • Remove the back panel by pulling it up and away from the laptop.

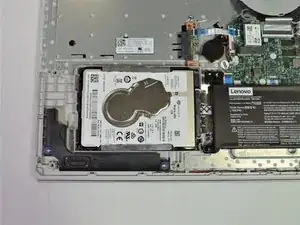

  6. VXxLpMldyIKXmFXJ
    VXxLpMldyIKXmFXJ
    BpVpIGI1YD1Z2B6Z

    • Before removing the drive, make a backup copy of all the information on it if possible. Never remove the drive while the system is operating or in suspend mode.

    • Gently lift up the hard disk from the left.

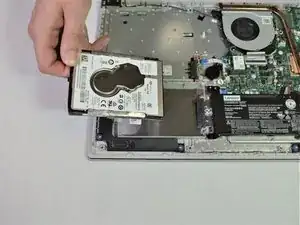

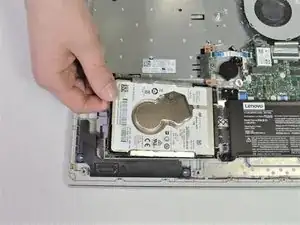

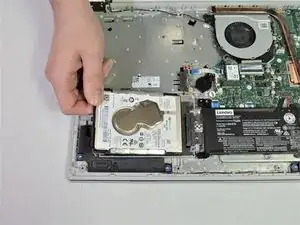

  7. 3Snqk1lbr15LECsl
    3Snqk1lbr15LECsl
    qAFAFssVwIsAZruW
    fDpCkfSP1PQerSnJ

    • Do not lift hard drive straight up as it risks breaking the connection port.

    • Carefully pull the hard drive away and out of the connection port.

    Sir, and how to fix ssd after removing hdd in it.

    Zikrullah Ansari -

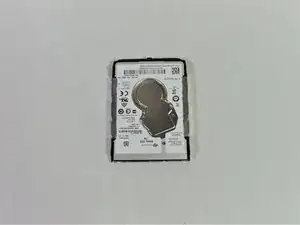

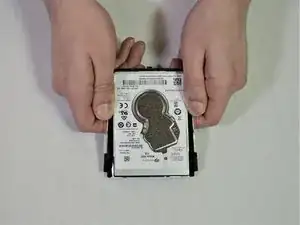

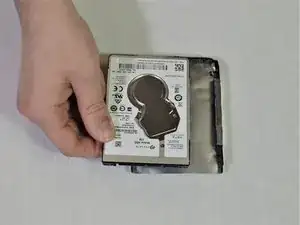

  8. EZNKverA2P1grtDH
    EZNKverA2P1grtDH
    y1ryTBLiBopgVZbb
    vUHn2BnU2RqNAsdP

    • Detach the bracket from the hard drive by pulling the bracket edges apart.

Abschluss

To reassemble your device, follow these instructions in reverse order.
