Lenovo Ideapad 320-15IAP Battery Replacement

Geschrieben von: Franco Criscola
  • Kommentare: 3
Lenovo Ideapad 320-15IAP Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

5 Minuten

Einleitung

The purpose of this guide is to demonstrate how to replace the battery of your Lenovo Ideapad 350-15IAP. This replacement guide is very simple and requires very little technical knowledge to complete. In summary, you will be using a Phillip’s head screwdriver to remove the case of the laptop. The battery will be immediately exposed and can be removed by simply removing four screws.

  1. njJ2hlQTTht3DwdI
    njJ2hlQTTht3DwdI
    4ryFNkE4jTVxYFOp

    • Before you begin, be sure to turn off your laptop and unplug it from the outlet.

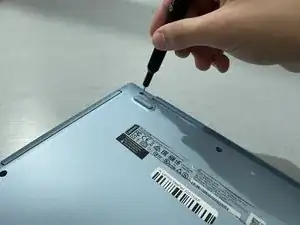

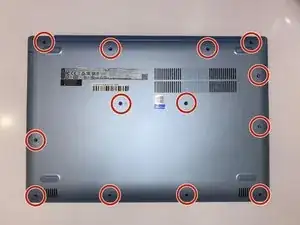

    • Using a Phillips #0 screwdriver, unscrew all thirteen 6.5 mm screws from the back case.

  2. uNQtx45I6EvghHkc

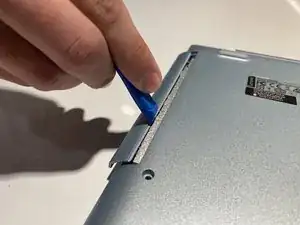

    • Pull the CD drive outwards with an opening tool until it pops out as shown. It is possible you have to apply a substantial amount of force so watch your fingers while doing so.

    • Remove the CD drive.

    Do you just pull it until it comes out? I think you need to clarify this point, especially when you say it takes substantial force.

    John Lamothe -

  3. 4Yiq6prLb3GGl54M

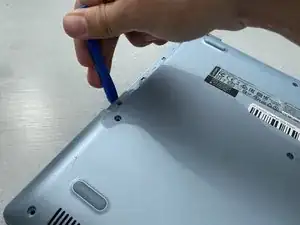

    • Lift up the cover using the opening tool on different spots along the side of the laptop.

    Probably need another photo showing the case separating.

    John Lamothe -

  4. TyVSBFOODIBRX4kO
    TyVSBFOODIBRX4kO
    wJ2eLK1clEatlCOE

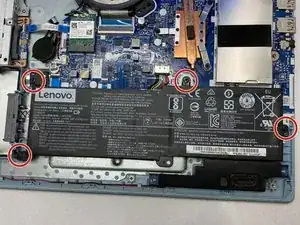

    • Using a Phillips #0 screwdriver to unscrew the four 5.5 mm screws securing the battery.

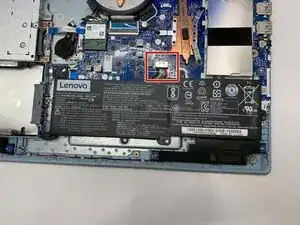

  5. yPqHRlNBCIdWa6ZO
    yPqHRlNBCIdWa6ZO
    kk1s11A1CddEVYhr

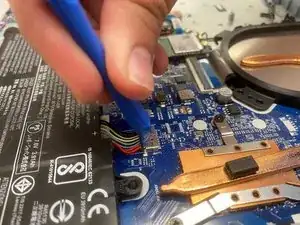

    • Disconnect the battery cable from its motherboard socket by gently pulling it towards the battery.

    • Pull parallel to the battery, not straight up.

  6. vAkVmWLReD3MwFag

    • Remove the battery.

    I’d like to see you add a note at the end about proper battery disposal.

    John Lamothe -

Abschluss

To reassemble your device, follow these instructions in reverse order.

For optimal performance, after completing this guide, calibrate your newly installed battery.

Take your e-waste to an R2 or e-Stewards certified recycler.

Repair didn’t go as planned? Try some basic troubleshooting, or ask our Answers community for help.
