Einleitung

This guide will show how to replace the screen for a Lenovo Ideapad 320-15IAP. The screen is usually the primary way that users and computers use to communicate. If there are any problems with the screen, the user is not able to use the computer properly. You can use this guide to change the screen if it is scratched, broken, or has LCD damage. Typically, a physical impact on the screen will cause damage to it that will result in different issues. However, you can keep using the computer after replacing the damaged screen.

  1. lH6IISUWgaqrq2qF
    lH6IISUWgaqrq2qF
    HMAjNfGqlT2wMcl2
    WZXUvYAwsQHE1Vd1

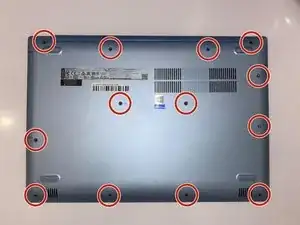

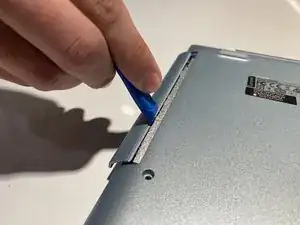

    • Unscrew thirteen 6.5mm screws from the back panel with the Phillips #0 screwdriver.

    • Pull the CD tray out from the computer with a plastic opening tool once all screws are removed.

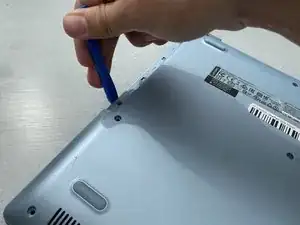

    • Use the opening tool to pull the case off the laptop by prying up the back panel along the edges of the computer.

  2. uyo6hy3VLI2CMJ6c
    uyo6hy3VLI2CMJ6c
    TyyL2ly1GH2Xla4L
    2xaOWFTSAtZOAQYK

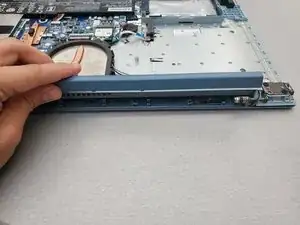

    • Remove the back protector by gently pulling up. There might be some scary sounds but it is normal.

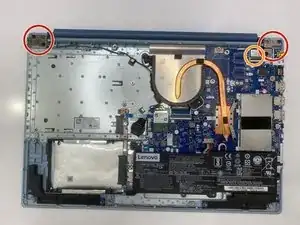

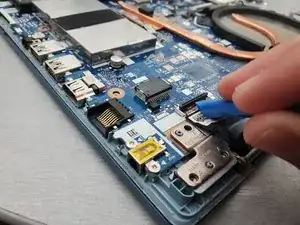

    • Unscrew four 4.5mm screws from the display hinges using a Phillips #0 screwdriver.

    • Disconnect the display cable by gently pushing up on the black tab of the ZIF connector and pulling the cable out.

  3. IPiLTG4axLNpKUX6
    IPiLTG4axLNpKUX6
    a1HBuoueWJNwb2IH
    pdYjNdERqXUXYQJP

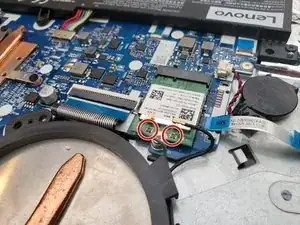

    • Unplug the two coaxial cables on the WiFi card by gently pulling the cables directly up.

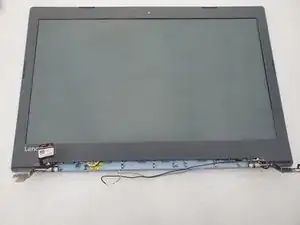

    • The screen should now be fully disconnected and ready to be removed.

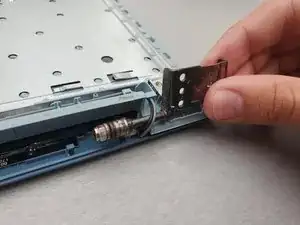

    • Rotate the screen brackets using the opening tool to prop them up.

    • More than likely they will be very hard to pull open. If you have trouble getting them up with an opening tool, you might try opening the laptop while pressing both brackets to the case, then closing the laptop while leaving the brackets up.

    • Remove the display assembly.

  4. vapsXkSJuCvanPrT
    vapsXkSJuCvanPrT
    bFXWBuL6KLUNN31O
    DfTLeQIXP3QZN6U5

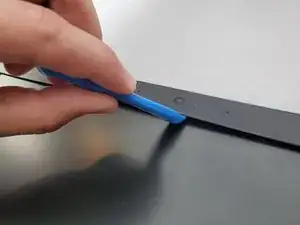

    • Use the opening tool to lift the screen bezel. You may hear popping sounds as the clips disengage.

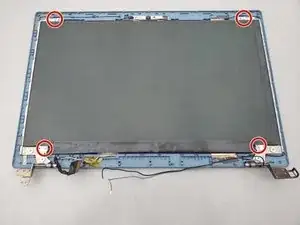

    • Unscrew four 3mm screws holding the screen onto the laptop case with a Phillips #0 screwdriver.

  5. ZUMF1YjFUZsRa2yy
    ZUMF1YjFUZsRa2yy
    3MrjeWYSoCgySYgN

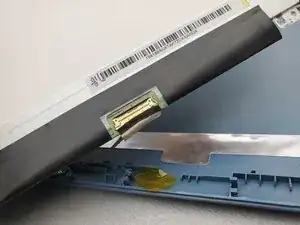

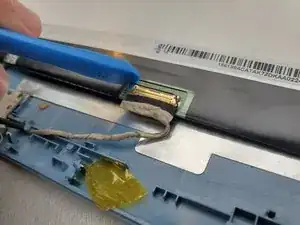

    • Remove the display cable on the backside of the screen by lifting the metal handle up from the connector and gently easing the cable from the connector.

    • Remove the screen from the display case.

Abschluss

To reassemble your device, follow these instructions in reverse order.
