Lenovo Ideapad 320-15IAP Touchpad Replacement

Geschrieben von: Franco Criscola
  • Kommentare: 1
Lenovo Ideapad 320-15IAP Touchpad Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

50 Minuten

Einleitung

The laptop touchpad is a built-in mouse. If there is any dirt or debris in the crevices. the touchpad might be unresponsive. The touchpad could have been accidentally locked. Try cleaning and checking your settings, before removing your touchpad. If the touchpad is still unresponsive, this guide can help you replace the touchpad on your Lenovo IdeaPad 320-15IAP.

  1. jDLve5mdyFdCRUJK
    jDLve5mdyFdCRUJK
    2q4P6LYI2naEDKl3
    fUHvPbWL35tsdpgJ

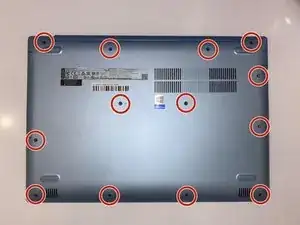

    • Unscrew thirteen 6.5mm screws from the back panel with the Phillips #0 screwdriver.

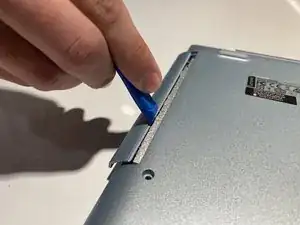

    • Pull the CD tray out with the opening tool once all screws are removed.

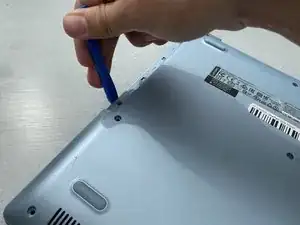

    • Use the opening tool to pull the case off the laptop by prying up the back panel along the edges of the computer.

  2. XBDKUCMXGvIn3lpE
    XBDKUCMXGvIn3lpE
    2ZCjIBJI22CCiwwY
    EKV22MpNZKbSNfM6

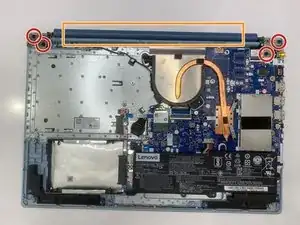

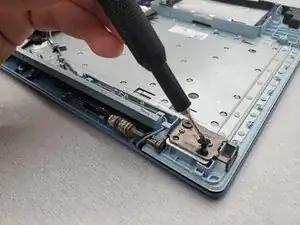

    • Unscrew four 4.5mm screws from the screen brackets using a Phillips #0 screwdriver.

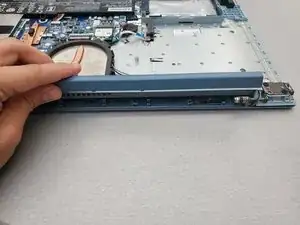

    • Gently pull the wire protector from the back of the computer. You may hear cracking sounds but this is normal, as the locks are disengaging as you pull.

  3. KfGUOEEomE5vhajH
    KfGUOEEomE5vhajH
    blACs6gqnwrPpjKe
    5TrDhLkQrYF4G3dU

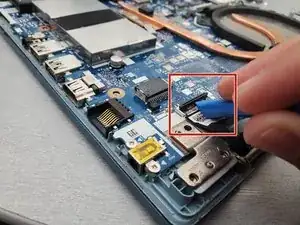

    • Disconnect the display cable by lifting the black tab of the ZIF connector with the opening tool and gently pulling out the cable.

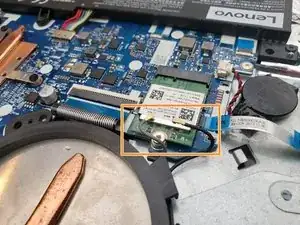

    • Disconnect the two coaxial cables on the WiFi card by gently pulling up on the wires.

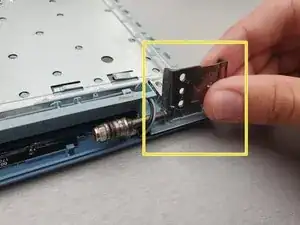

    • Lift up the screen brackets by prying upwards on them with an opening tool.

    • It may help to pry up on both brackets simultaneously, but only the righthand one needs to be lifted so that the motherboard can be removed from beneath it.

  4. ZRtEpZnCUxUN5gJB
    ZRtEpZnCUxUN5gJB
    6FwSVRCVC3XOH5gU
    23cECPOgT3NpqJhh

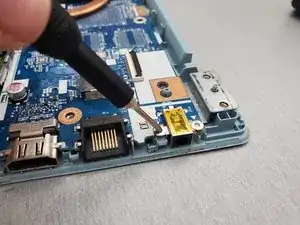

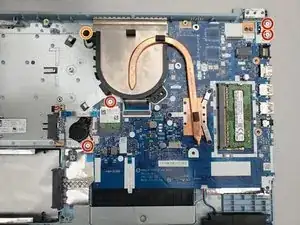

    • Unscrew four 3mm silver screws on the motherboard using the Phillips #0 screwdriver.

    • Unscrew the single 6mm black screw with a Phillips #0 screwdriver.

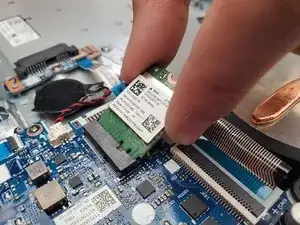

    • Unscrewing one of the silver screws will force the WiFi card to pop up. If your new motherboard doesn't come with its own WiFi card, you should unplug the card and install it into your new motherboard.

  5. 1ZDjuNwoENIK5HT5
    1ZDjuNwoENIK5HT5
    YgutXKnmlQELL3kV
    TXI3VypAkJ5jHQgr

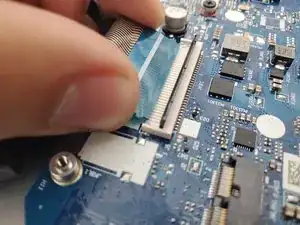

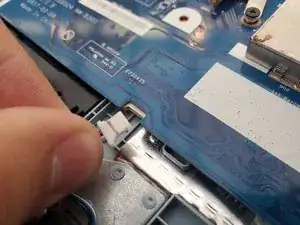

    • Remove the six ribbon cables by lifting up the locking black tabs from their ZIF connectors with a spudger, then gently pulling out the cables.

    Make your second bullet a note instead of a bullet.

    John Lamothe -

  6. dunLiyvUnC2toR45

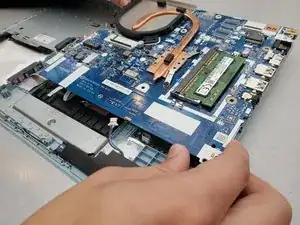

    • Gently remove the motherboard, being sure that no cables are being pulled or snagged in the process.

    • If your new motherboard did not come with RAM sticks installed, you may need to transfer over your old RAM before reinstalling. Check out this guide to see how it's done.

  7. 5EwNiQTKJUhErDEI
    5EwNiQTKJUhErDEI
    s1fSM4qD5yOQobTl

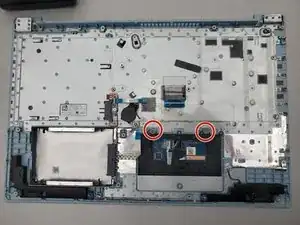

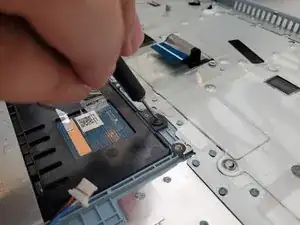

    • Remove the two 2.5mm Phillips #0 screws from the upper edge of the trackpad.

  8. 6ITCJqwGwoskU5qJ

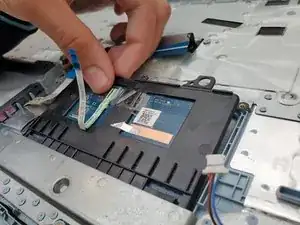

    • Lift the trackpad from its bay from the upper edge to remove it from the laptop.

    • When reinstalling the touchpad, Be sure to insert the bottom edge first.

Abschluss

To reassemble your device, follow these instructions in reverse order.
