Lenovo Ideapad 320-17IKB LED Screen Replacement

Geschrieben von: a1235
  • Kommentare: 2
Lenovo Ideapad 320-17IKB LED Screen Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

3 - 6 Minuten

Einleitung

This guide for the Lenovo IdeaPad 320-17IKB will show the user how to remove the front LED assembly for replacement.

An LED screen is the flat display panel that portrays the images seen on the laptop. It does this through the use of light emitting pixels. Be careful not to bend or twist the LED screen during removal as it can damage the component.

Before replacing this LED screen, check out the Lenovo IdeaPad 320-17IKB Troubleshooting.

  1. BgV5PHJGLENHvSje
    BgV5PHJGLENHvSje
    nDc3PTWAxxiSBvTS
    fYG5IirC1sFJdvDM

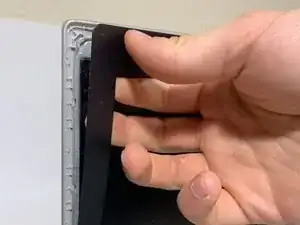

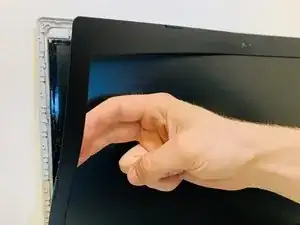

    • Start from the left side of the bezel (plastic covering) by gently removing inner edge of the plastic. Continue to do the same thing on the right side.

  2. EXseUeqNVwsecDSF
    EXseUeqNVwsecDSF
    M1OY3WCoZOWmqrFr
    PXJvaGYVMoBRdDVH

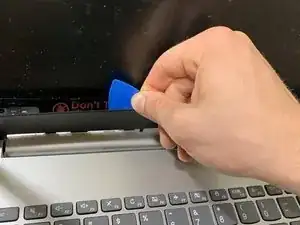

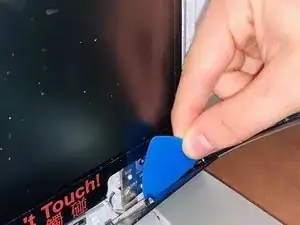

    • Turn the laptop sideways and insert the plastic pick between the bezel (plastic covering) and the laptop cover. Use the plastic pick to separate the bezel from the top cover.

  3. RAQUNxXwbMX5PFvR
    RAQUNxXwbMX5PFvR
    kNtBnHSPMKMAe6rB
    xgDwlCYamSKTNIfL

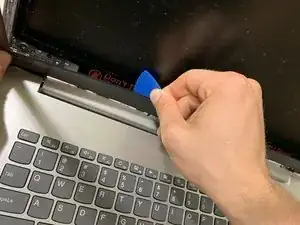

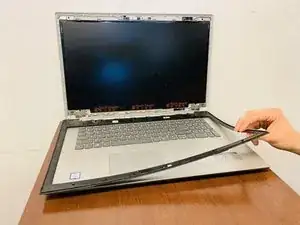

    • Remove the bezel (plastic covering) from the laptop completely and set aside.

    • Do not twist or bend the LED screen or the bezel. Doing so could result in permanent damage to the LED screen or injury to yourself.

  4. bfCYTDfN3WOyGQeR
    bfCYTDfN3WOyGQeR
    D2aA3aKqgiNmAOsT
    Rrm15LlsRS1cEGnf

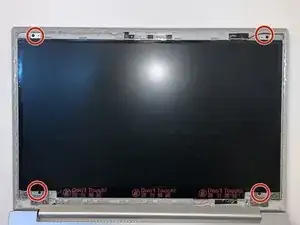

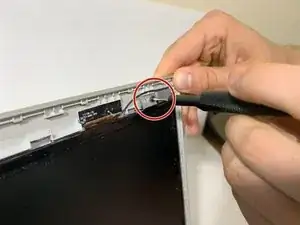

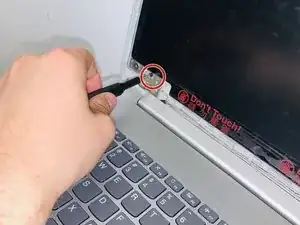

    • Remove the four 7mm JIS #00 screws from each corner while holding the screen in place.

  5. 6nmAWcchXAwMKNLW
    6nmAWcchXAwMKNLW
    NTCJfjbsGWNxnqgM
    21bpbUnbNrcOwh1b

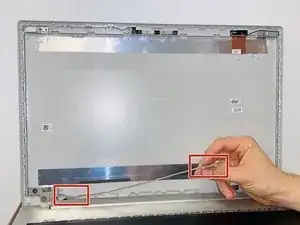

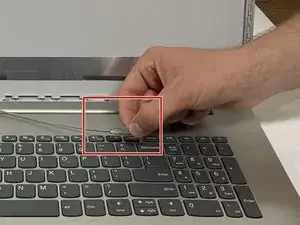

    • Place the LED screen on the keyboard and use your fingers or the iFixit opening tool to open the bracket securing the video connector. Then, disconnect the video cable.

  6. ulAZcfuSWxjloLgQ
    ulAZcfuSWxjloLgQ
    erESlfDKMtdcEbEI

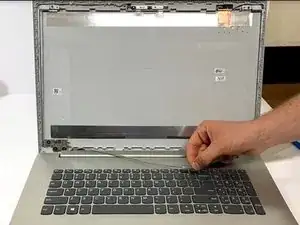

    • Once all the other steps have been completed you should have a disconnected LED screen, and bezel. The connector tab should remain adhered to the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
