Lenovo Ideapad 330-15ARR Fan Assembly Replacement

Geschrieben von: Brayden Fleming
  • Kommentare: 0
Lenovo Ideapad 330-15ARR Fan Assembly Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

2 - 3 Minuten

Einleitung

This guide is meant to detail the location and disassembly of the fan unit on the underside of the Lenovo Ideapad 330-15ARR.

  1. AojHVOe1OL5vAZ2N

    • Remove all Phillips #0 screws securing the case to the laptop.

  2. fcGtLg1sDhyMRDbT
    fcGtLg1sDhyMRDbT
    uu5cv5g3biWSPOAH

    • Pry all edges off of the laptop with the opening tool until the lower case releases.

    • Remove the lower case.

  3. IhPcEonIUrH5H6nR
    IhPcEonIUrH5H6nR
    MT2SMKikALRDGoZc

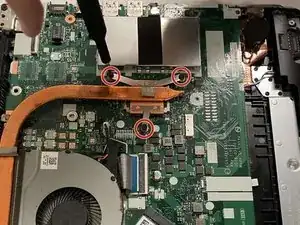

    • Unscrew all three captive screws attaching the heat sink to the motherboard with a Phillips #0 screwdriver.

    • These screws stay attached to the heatsink, so do not attempt to remove them.

  4. 4kcD22fdFYF21PHO
    4kcD22fdFYF21PHO
    ZKvk6yy3EB4TNc2P

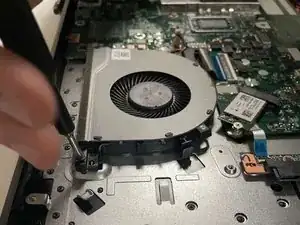

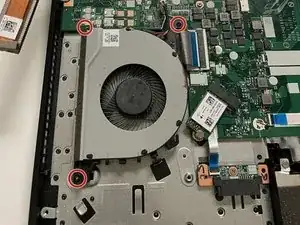

    • Remove the three Phillips #0 screws securing the fan assembly.

  5. GmwPSTtNFQD1nAap
    GmwPSTtNFQD1nAap
    GCoEFvxopPrITSWC
    OQSNCxlSS1HyYMKh

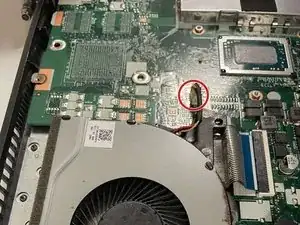

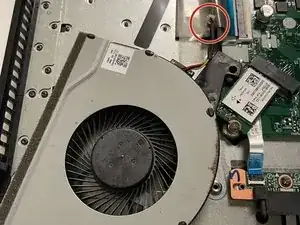

    • Take the wires in your hand, and firmly but gently pull it out of its port.

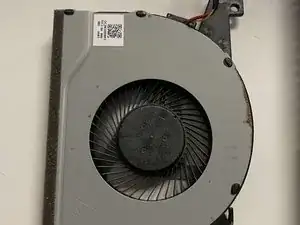

    • Lift the fan assembly out of the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
