Einleitung

If the laptops speakers need to be replaced, this guide will be helpful in order to walk you through the process.

  1. WsCrELRFTKA4SEaF
    WsCrELRFTKA4SEaF
    YdFWgfZwPP1ltaGR
    • Start by removing the feet near the LCD hinge of the laptop to reveal two screws.

    • Using a Phillips #1 screwdriver, remove the top five (30 mm) screws underneath the battery.

  2. cvIunLaBg6SsfXeH
    cvIunLaBg6SsfXeH
    GMjihlVAEQlmHMQk
    • Once both feet are removed, two (40 mm) screws will reveal themselves. Unscrew these.

  3. ajR16IMjy1ThZ1VF
    ajR16IMjy1ThZ1VF
    XLNQHTREORDbnJbA
    reu32yRPjOgCh5YK
    • Working your way around the outer edges of the Flex 15, remove the 8 (30 mm) outer screws.

  4. JVBib5G3yplytlBy
    • Remove the one (40 mm) screw in the middle of the Flex 15.

  5. D6VhCLX1EQCouaxD
    D6VhCLX1EQCouaxD
    S6yTpxCLThWgbsCS
    fMDTdOMYWtwNklAs
    • Using a plastic opening tool, make your way around the edge of the laptop.

    • There is a visible line between the bottom shell of the laptop and the laptop body itself.

  6. kHnGUVT4iLMKw1JT
    kHnGUVT4iLMKw1JT
    bH6dARkCcClhR332
    • Make sure to pry evenly around this edge and only remove the bottom of the laptop when it is fully loose.

    • Using excessive force may break the bottom plastic. There are plastic clips along the edge of the laptop.

  7. qGSQ6CHDoCaZcolt
    qGSQ6CHDoCaZcolt
    M1yFqWmbc3CCjZAK
    OhjGCkWTaLmaKEUX

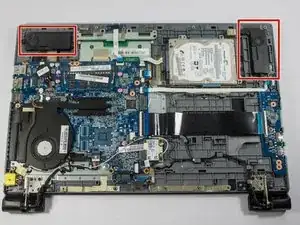

    • Locate the speaker unit at the top left hand corner of the Flex 15.

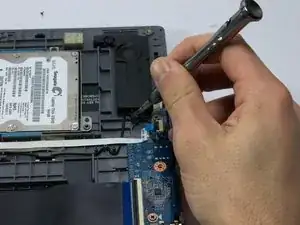

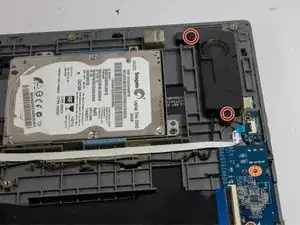

    • Using the screwdriver (PH1 bit), remove the (50 mm) screws on either side of the speaker unit.

  8. UiGeiVbU3qQ5vdPF
    UiGeiVbU3qQ5vdPF
    E36Bs1hKyGEywhbn

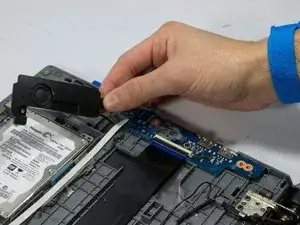

    • There is a small white socket which a cable of the speakers is plugged into.

    • Pull the wire off by pulling either sides of the black header (do not pull the wire directly as it could break off).

    • The speaker can be removed carefully.

Abschluss

To reassemble your device, follow these instructions in reverse order.
