Lenovo Ideapad Flex 4-1570 Hard Drive Replacement

Geschrieben von: Isaiah Vang
  • Kommentare: 0
Lenovo Ideapad Flex 4-1570 Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

5 - 10 Minuten

Einleitung

If the laptop is lagging, and the mouse is slow to react, use this guide to replace your hard drive.

  1. ojWRnVYoqxDJaEkV

    • Shut down and unplug your laptop before you begin.

  2. CiRWrVBfipjoFWvN

    • Remove the nine 6 mm screws using a T5 Torx Screwdriver.

    • Remove the two 10 mm screws using a T5 Torx Screwdriver.

  3. OMTwerHSbE4xSCXP

    • Use a plastic opening tool to carefully pry off the back cover.

    • Remove the back cover.

  4. vRYC6NSKu3qvHsy3
    vRYC6NSKu3qvHsy3
    ZIfCru5iuHTWQFKr

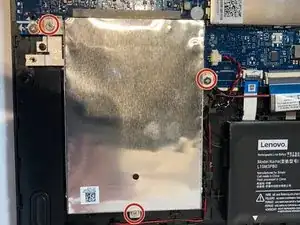

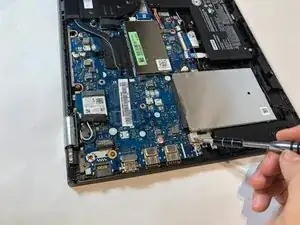

    • Remove the three 4 mm screws using a Phillips #00 screwdriver.

  5. 2OlAIAUtjJFOoYmS

    • Lift the hard drive up and out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
