Lenovo Ideatab A1107 Front Camera Replacement

Insert a plastic opener in-between the black back panel and the silver body of the tablet.

Use the plastic opener to pry the back panel off by moving the plastic opener around the outside edge of the device.

Use a Phillips #000 screwdriver to remove the seventeen 4mm screws.

Lift up and remove the interior casing to expose the inner components.

Use tweezers to remove the tape covering the battery's wiring.

Use a plastic spudger tool to push the battery's wire harness and disconnect it from the device.

Wedge a plastic opening tool in between the battery and the internal components of the device.

Use the plastic opener tool to remove the battery from its casing.

Using you hands, lift off the digitizer.

Remove the three screws that are 2.0 mm in length and have a 5.25 mm head width with a Phillips #00 screwdriver.

Use a spudger to remove the plastic piece securing the zero insertion force (ZIF) cable connector.

Use tweezers to grasp the ribbon cable, then pull the cable to disconnect it from the device.

Locate the black electrical tape strip on the side of the device.

Gently remove the tape from the device using the tweezers.

After removing the electric tape, gently lift up the green control panel.

Taking the tweezers, remove the ribbon cable from the control panel.

Once the ribbon cable is removed from the panel, the display should separate with ease.

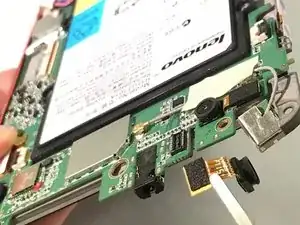

Using the tweezers, pull and remove the front camera component.
