Lenovo Ideatab S6000 Rear Camera Replacement

Geschrieben von: Josiah Speed
  • Kommentare: 1
Lenovo Ideatab S6000 Rear Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

Keine Schätzung

Einleitung

  1. PsUJfLXuNB1vCknu

    • Remove the speaker screens by working them loose with a plastic opening tool. You may need to first loosen them with tweezers or a craft knife.

    • These screens are held in place by glue that is hard to remove. Please take your time to ensure that that this step is done correctly.

    I little bit of heat goes a long way when taking off the speaker screens.

    Ben Meinhart -

  2. iVfVDxnYOKkoPuBX

    • Remove the screws from both of the spots that were covered.

  3. dCtAIW4dGgVEkAtn

    • DO NOT USE A METAL TOOL FOR THIS.

    • Go all around the casing, prying the screen away from the backing with the spudger.

    • It will make a popping sound each time one of the lock tabs is disconnected.

    • Take your time as you move all around the device when prying the backing off.

  4. D3JPUggmKoY6psgv

    • Pull off the plastic that is covering the battery cable.

  5. 2B6VZHmrTEb242v6
    2B6VZHmrTEb242v6
    ZBcIKU6YeU6qnVc2

    • Using either the plastic opening tool or your fingers, gently pull on both sides of the plug to release it.

  6. rPT5qVMRWKvWCZGL

    • Remove the battery by grabbing the tab shown and pulling up.

    • The battery is held to the device by adhesive. Pull the battery up from the tab and it will lift out with a bit of effort.

  7. AHwEYgJoLVSkhP5l

    • Gently lift up on the metal connector plate.

  8. WhaAgRwpDIVmu6U1
    WhaAgRwpDIVmu6U1
    FWSWVJJZdMtX4rFo

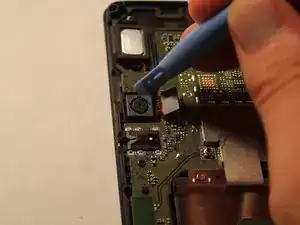

    • Push against the camera from all sides to loosen it from its position.

    • NOTE: The camera is connected by glue, so take your time, it will come out.

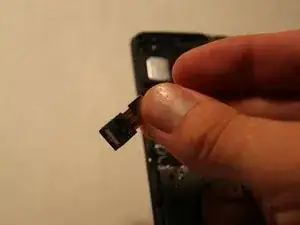

    • If you wish to replace the camera simply plug in the new camera, and follow the guide in reverse.

Abschluss

To reassemble your device, follow these instructions in reverse order.
