Lenovo Ideatab S6000 Speakers Replacement

Remove the speaker screens by working them loose with a plastic opening tool. You may need to first loosen them with tweezers or a craft knife.

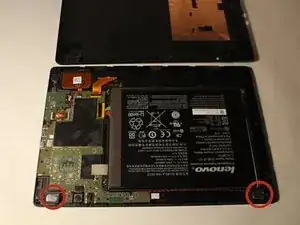

Remove the screws from both of the spots that were covered.

Go all around the casing, prying the screen away from the backing with the spudger.

It will make a popping sound each time one of the lock tabs is disconnected.

Pull off the plastic that is covering the battery cable.

Using either the plastic opening tool or your fingers, gently pull on both sides of the plug to release it.

Remove the battery by grabbing the tab shown and pulling up.

The battery is held to the device by adhesive. Pull the battery up from the tab and it will lift out with a bit of effort.

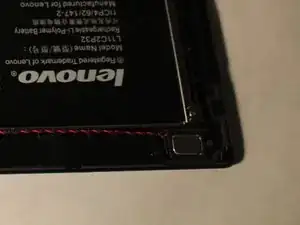

The speakers are connected to the tablet by glue and require a lot of prying to remove.

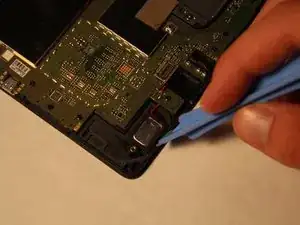

Make sure to get all the way under the speakers when prying.

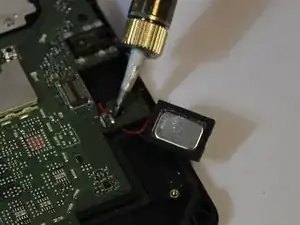

To the remove the wires heat the solder connecting the wires to the board, and gently pull on the wires.

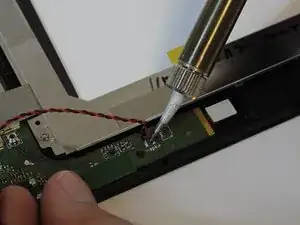

Connect new speakers by soldering the wires onto the board.
