Detailed steps to dissasemble to the logic board, then usefull pictures for rest of guide. (remember to add new thermal compound if you need to remove/replace fan assembly on processor and GPU)
Werkzeuge
-
-
recommend to print out picture of the backside of the laptop and then use it as a template to place the screws on. They are many and different sizes.
-

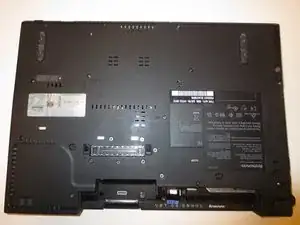

Remove all bottom screws and place on template printout.
-
-
-

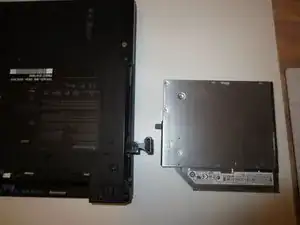

Remove DVD drive. Toggle the "play triangle" switch so that the tab extends. Pull the tab to remove the DVD drive.
-

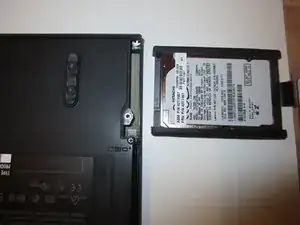

Remove hard drive
-
-
-

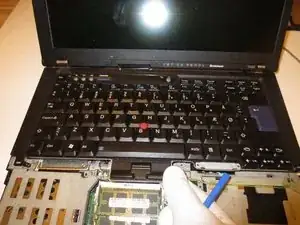

Pull keyboard gently toward yourself. and then lift up untill flex is visible.
-

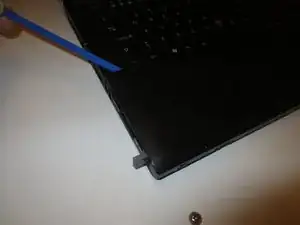

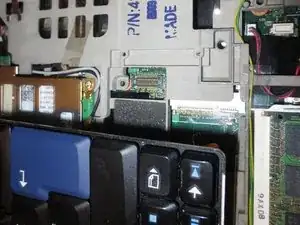

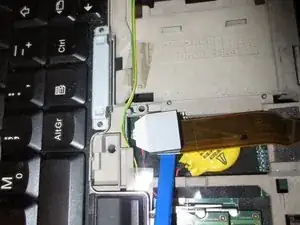

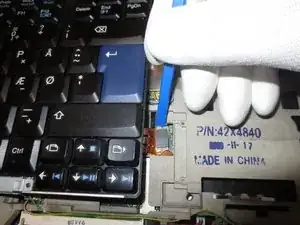

use spudger to disconnect connector for keyboard.
-
-
-
The rest of the guide is mosly helpfull pictures...
-
Remove WLAN module by
-

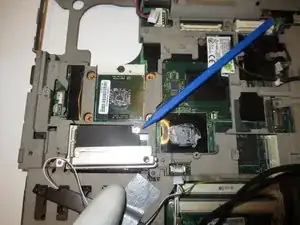

unplug carefully with spudger the two RF connectors to WLAN module.
-
remove the two screws holding wlan module.
-
lift up module 45 degress and pull outwards.
-
-
-

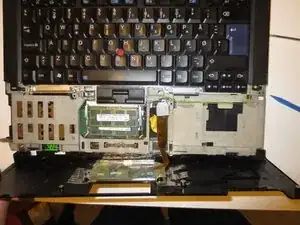

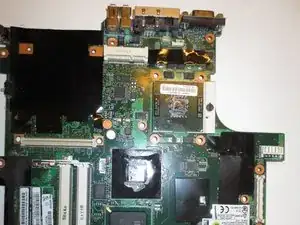

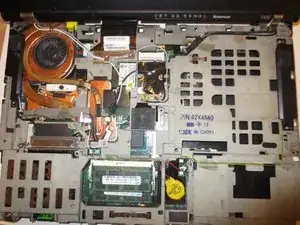

usefull images showing most of main assembly.
-
Removing RAM modules is usefull if the whole logic board needs to be taken out.
-

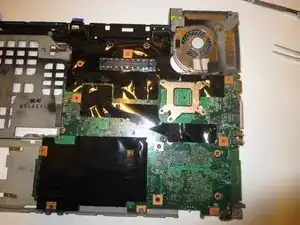

From here on , unscrew everything - carefully note where screws belong. I used Ifixit magnetic mat and some note making.
-
To reassemble your device, follow these instructions in reverse order.
