Lenovo Legion 7i screen Replacement

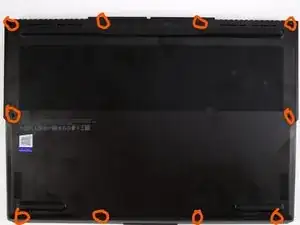

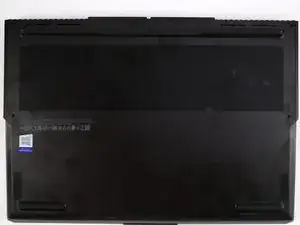

Remove bottom panel of laptop removing all the screws which should be differing sizes. Which should be ten 4 long on the top near the rear exhaust vents

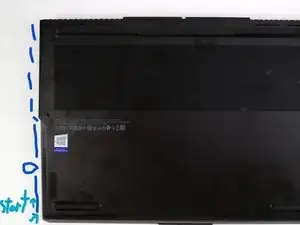

Pay extra attention when getting near the side vents use a very slim pry tool. once both side vents are unclipped and entire side near under light bar is unclipped should come apart from chassis easily if not you still have clips to unclip using wedge, guitar pick, or slim pick tool

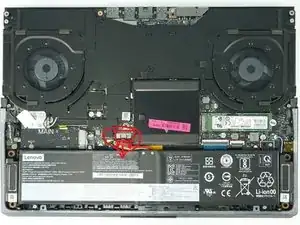

Ground your self to remove static from your working surfaces (hands, gloved hands preferable) touch the heat sink or vapor chamber. Pull out black battery connector of silver outlet. make sure to not have battery connector touch anything. You do not need to remove battery out of chassis entirely.

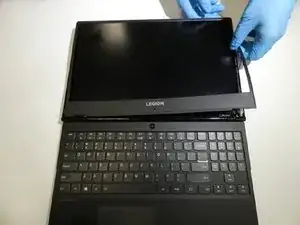

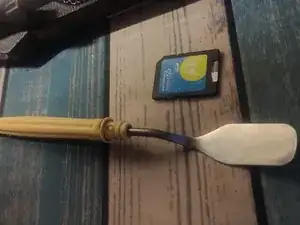

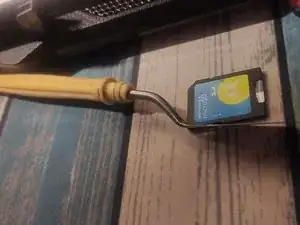

Removing the bezel you may need some type of very thin slim spatual like tool. Similiar to ones used in 3d printing to remove prints from the printing bed.

You will be cutting a slight adhesive throught the insides of the bezel.

Since cannot post vid more than 30 seconds. I Will include link to lenovo made video depicting them removing said device's Mylar bezel. Bezel removal should not be rushed and be meticulously gentle during the unclipping of the plastic clips. Be extra careful when rounding the inner edges of the bezel to not mess with top camera module

Do not put the pick or spudger too deep into the bezel during removal in that area at the top

https://pcsupport.lenovo.com/us/en/solut...

Go to bezel removal on the list in the lenovo website.

These next steps are delicate as if you haven't unplugged power supply and battery from mobo connector problems can arise! CAUTION! do not proceed if you have no done those two things already.

First you will remove the bottom as seen in video. I have broken up the lenovo vid because this next 7 steps are so important to this.

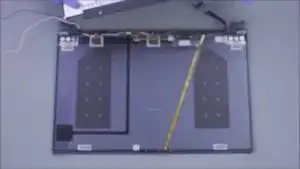

removing the special tape will not be able to be reused unless you want to risk it not sticking properly so double sided special tape/equivalent should be bought from the panel seller or of similar products seller.

Product i found most similiar. The dimensions listed should be the near the tape you do end up buying. remeber tip use tweezers to remove the double sided tape protector skin if it is a very small sized one you have gotten.

Opposite side panel adhesive removal.

technique shown is correct but the tape will not be reusable.

if really desperate you can reuse tape if pulled out correctly slowly but takes the patience of not many have

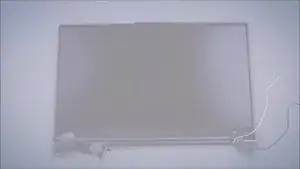

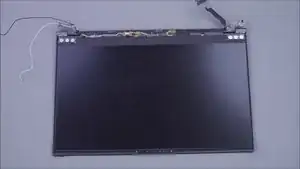

Use suction cup as shown and slowly lift the panel off the top cover of laptop to be able to get hands on with the EDP cable.

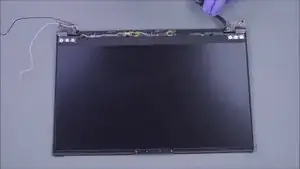

Lift tape and remove cable as shown while holding panel up and be careful not to pull panel out until then as damage can occur or something internal be unplugged.

CAUTION: not said in video and done in it they are using metallic tweezers to remove cable do not do this use plastic pic or anything not electriclty conductive and pull up cable detach catch and remove the edp cable slowly.

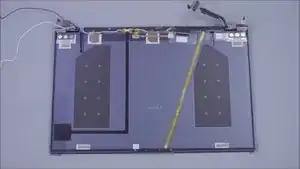

INSTALL new tape for new panel attachment.

Tapes shown are not full length use approx. length of tape of about 7- 5in atleast to make sure there is enough mounting pressure to remain panel in place. Rember to check that adhesive is strong enough to do its job before finishing this project or you will have to replace them.

We almost there :)

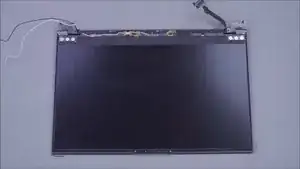

Connecting the new panel replacement

Connect EDP cable. Make sure is fully seated and then flush EDP cable clear tape for adding adhesion to port.

make sure lock in cover is fully closed on edp cable as plugged in.

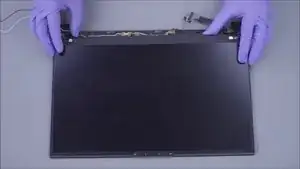

Make sure screen is flush on top Top lid tape its being adhered to.

The vid show additional that doesn't pertain because we did not remove entire top half of laptop from the main chassis so to finish up you only need put CAREFULLY the mylar bezel cover after you plug in battery and check panel is working and functional. Finish it and good luck Estmated time of replacement 1.30hrs Take your time and do be careful
