Lenovo Legion Slim 7 2021 Battery Replacement

Geschrieben von: Ye Zhiyi
  • Kommentare: 0
Lenovo Legion Slim 7 2021 Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

5 - 25 Minuten

Einleitung

You may need a new battery if your laptop does not last long without a power adapter. This guide will tell you how to replace the battery.

If your battery appears to be swollen, take appropriate precautions.

Before you start, power off the device and disconnect the power adapter.

  1. UvWYoy2STKDuERZU

    • Flip the laptop.

    • Remove the 8 screws on the back cover and keep them safe.

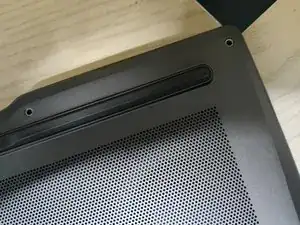

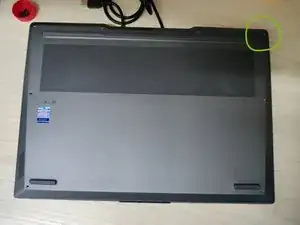

  2. GXWmvQQB35pMPypi
    GXWmvQQB35pMPypi
    oPPQTGLMpH16DY4s
    hZXAcbJtuDO4Fgoa

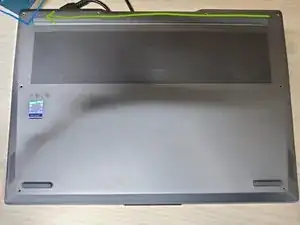

    • Insert an opening pick into back-right corner of the back cover.

    • Slide the opening pick slowly along the rear side to release the plastic clips.

    • Avoid inserting the opening pick too deep (>5mm), and do not add a lot of force.

    • If an opening pick is not present, you could use a plastic card. It should also work.

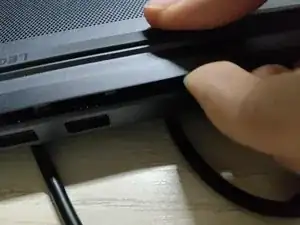

  3. ZYjwvqdwBXln43Kn
    ZYjwvqdwBXln43Kn
    VqVxMeQFgDQELEfa
    NRHhQreiN1SALiYb

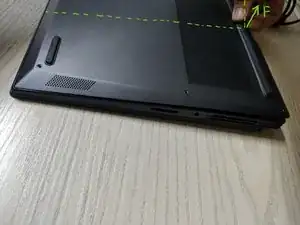

    • Use your finger to lift the rear side of the back cover up.

    • Add force backwards and upwards until the back cover is open.

    • Do not add a lot of force. If it is hard to open, try adjusting the direction of the force.

  4. 3nMYDkUSIdehMsUR
    3nMYDkUSIdehMsUR
    ZWevFbKjggI44Ffy

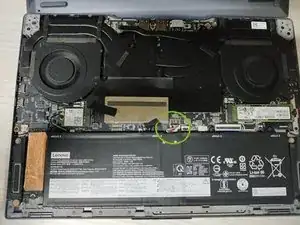

    • Pry the battery cable out by a little bit to disconnect the battery from the board.

    • Avoid using sharp or metallic spudgers, as they may slip and damage the device.

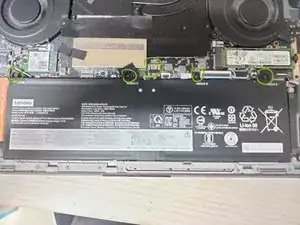

  5. HcMpllONxL6QXeLN
    HcMpllONxL6QXeLN
    DIHmyONSdi34aDZ3
    KbNnm5sDVisaE3eY

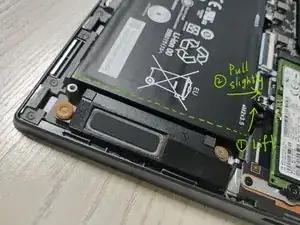

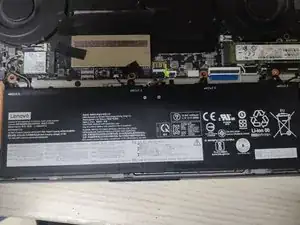

    • Remove the 4 screws on the battery.

    • Lift the inner side of the battery up, and pull it inwards slightly.

    • Take the battery cable out completely and remove the battery.

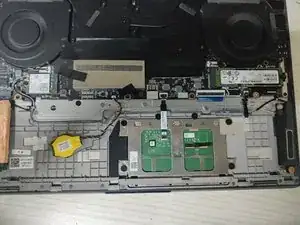

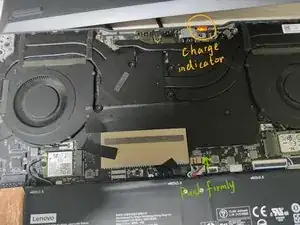

  6. CJb2XbYYsnYujbkP
    CJb2XbYYsnYujbkP
    QnfWumBAWSlNvl2t
    lKaGgnXsQsPpfGCv

    • Align the new battery and its cable into place.

    • Push the battery cable into the socket firmly. You will notice the charge indicator LED flash red when it is connected.

    • Add the 4 screws back.

  7. 5aNFt3L62txUXMsm
    5aNFt3L62txUXMsm
    vnSKZAvgmRfKlBQf
    BSMw4WXCNFsUQUbY

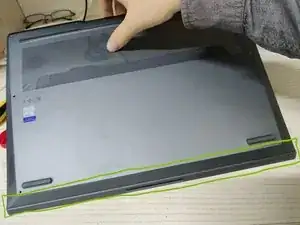

    • Carefully align the front side of the back cover into place.

    • Press the back cover down. Then push the marked areas to get the plastic clips back into place.

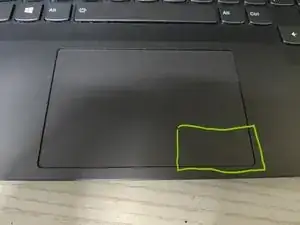

    • Turn the laptop over to make sure the trackpad aligns well. If it pops out as if the new battery got swollen again, try taking off the back cover and reinstall it.

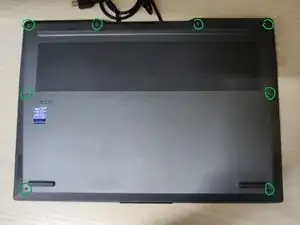

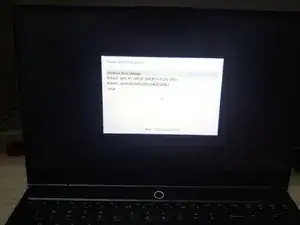

  8. 1OWR6qD3ebQjbJjG
    1OWR6qD3ebQjbJjG
    vKTFFJmgs1hAxG2W

    • Before sealing your device, it's suggested that you power up the device to make sure the new battery is working. Then turn it off before continuing.

    • Turn over the laptop and add the 8 screws back onto the back cover.

Abschluss

Done! Now power up your device and enjoy your newly installed battery.

For optimal performance, calibrate your battery. To do that, charge the battery to 100% and leave it charging for at least 2 hours. Then discharge it until the device shuts down (avoid making it hot). Finally, charge it to 100% without interruption.
