Lenovo Legion Y520-15IKBN Battery Replacement

Geschrieben von: Naomi Williams
  • Kommentare: 4
Lenovo Legion Y520-15IKBN Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

20 Minuten

Einleitung

If your laptop will not start up or stay charged you may need to replace the battery. It is not a difficult project and the hardest part will be prying the back piece off.

For your safety, discharge your battery below 25% before disassembling your device. This reduces the risk of a dangerous thermal event if the battery is accidentally damaged during the repair. If your battery is swollen, take appropriate precautions.

Shut down and unplug your device before beginning.

  1. xQuDnGbPX6M4KNIc

    • Shut down and unplug your device before proceeding.

    • Remove the thirteen 6.5 mm screws from the base plate using a Phillips #00 screwdriver.

  2. XeWO6QtnafV6GR5S

    • Flip the laptop on its side and wedge a spudger between the base panel and chassis, then pry around the perimeter until the base panel releases.

    • To get a better grip you may want to open the laptop slightly.

    • Lift the bottom panel off of the chassis.

    • During reassembly, make sure that the bottom panel clicks back into place on all four sides of the laptop.

  3. XeEDmTaa4hfpAUoK

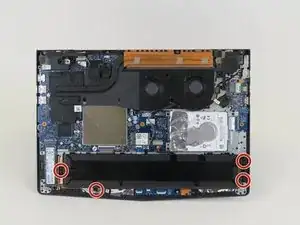

    • Remove the four 4 mm Phillips #00 screws securing the battery.

    there is no upper screw, right side has 2

    Oreo -

    Thanks for the catch! I’ve corrected the step.

    Arthur Shi -

  4. 6UjhBZWAYTwLA6vf
    6UjhBZWAYTwLA6vf
    2EEBkHBJTIQtqkSg

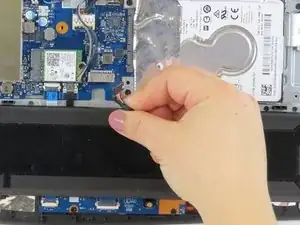

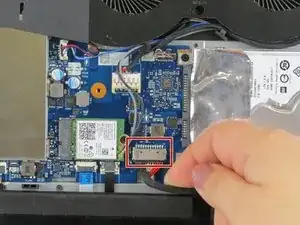

    • Disconnect the battery connector by pulling the battery cable directly out of its port, toward the battery.

    • Do not pull on the socket itself or you risk damaging the motherboard.

    • If necessary, apply force and slowly wiggle the connector out of its socket. It should work its way out slowly.

  5. TdiHgUpUYOLuu1jd

    • Lift the battery up and out of the chassis.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Take your e-waste to an R2 or e-Stewards certified recycler.

Repair didn’t go as planned? Try some basic troubleshooting, or ask our Answers community for help.
