Lenovo Legion Y520-15IKBN Hard Drive Replacement

Geschrieben von: Naomi Williams
  • Kommentare: 1
Lenovo Legion Y520-15IKBN Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

15 Minuten

Einleitung

This guide explains how to replace the hard drive in your Lenovo Legion. You may be replacing a fried hard drive or you may be upgrading memory. A hard drive can also be removed in order to put a solid state drive in place.

  1. qySDB5sNLLAFivO2
    qySDB5sNLLAFivO2
    NCYf1uErMsVcwCwp

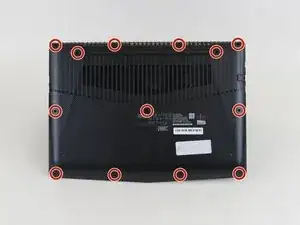

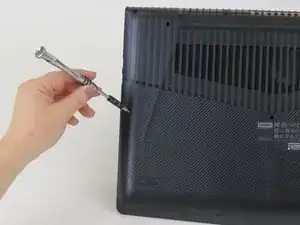

    • Remove the thirteen 6.5 mm screws from the bottom of the laptop using a Phillips #00 screwdriver.

  2. x3govKtnsrBFvi2R

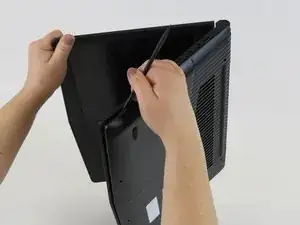

    • Flip the laptop on its side and use a spudger or a credit card to pry the bottom covering off. To get a better grip you may want to open the laptop slightly.

    • The bottom piece will make popping noises as it is pulled from the laptop.

    • When reassembling make sure that the bottom piece clicks back into place on all sides of the laptop.

  3. ScvvUO1qTnJGLPRj
    ScvvUO1qTnJGLPRj
    36qLRROQlPZjDmJt
    XUAInIHiRM5VgpMK

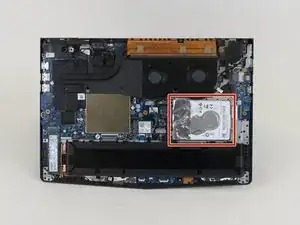

    • The hard drive is a white square located on the right side of your device.

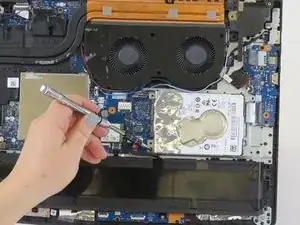

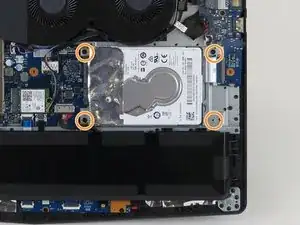

    • Use a Phillips #00 screwdriver to remove four 4.0 mm screws holding the hard drive in place.

  4. ipQnuOGxRZ1RLPo5
    ipQnuOGxRZ1RLPo5
    MmKxf5osSLYOZHEd

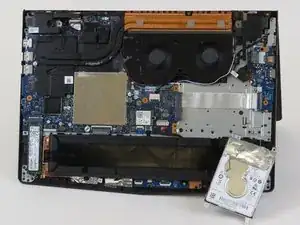

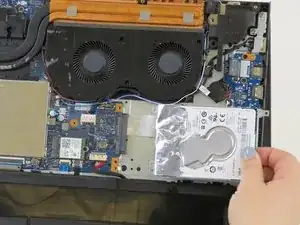

    • Slide the hard drive from the device towards your right.

    • When reinstalling remember to slide the hard drive in from the right. Don't try to force it in from the front.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Naomi Williams

Mitglied seit: 04/10/18

747 Reputation

Ein Kommentar

Hi,

does anyone know if replacing the 1TB hard disk with a 1TB SSD is possible? (I’m thinking in terms of cloning the whole disk: can I go for a 1TB SSD or do I need a bigger one? Do hidden partitions for restoring the system / this kind of stuff get copied correctly? Most tutorials online just copy the Windows partition: wouldn’t want to find out I can’t reset the system if needed.)

Cycy -
