Lenovo Legion Y520-15IKBN Keyboard Keycap Replacement

Geschrieben von: Kaylea
  • Kommentare: 3
Lenovo Legion Y520-15IKBN Keyboard Keycap Replacement

Schwierigkeitsgrad

Moderate

Schritte

2

Zeitaufwand

30 Minuten

Einleitung

This guide will show you how to properly replace the keycaps on your keyboard. The keycaps may need to be replaced on your keyboard if they are sticky, broken or don't properly register to your device.

  1. P6GqlSPxqBPPgIE6
    P6GqlSPxqBPPgIE6
    tw4gG62aZe5AoIVD
    M33bFhUgyFJk6yoS

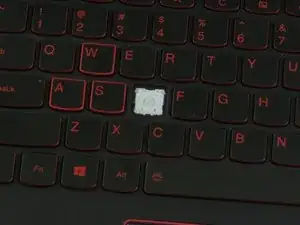

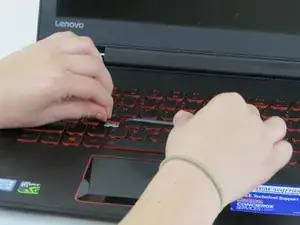

    • Carefully remove the broken key(s). Use the flat end of the spudger to gently pop the key off.

    • When removing the key(s) be very cautious not to remove the white plastic pieces underneath with it.

    • When reinstalling key, no spudger is needed. Just pop it into place with fingers.

  2. rqjADpaW4kiHYClv
    rqjADpaW4kiHYClv
    pTXte2k1sLKgKNXG

    • Using the flat end of the spudger, very carefully lift up the corners of the white plastic piece. Do not disconnect the two.

    • With the help of tweezers (needle nose works best), pull the connected plastic pieces out.

    • If the two plastic pieces come apart refer to the last picture, showing the orientation in which they should be connected.

    • For reinstallation of the plastic piece use tweezers to put it back in place and pop the bottom half in before the top.

Abschluss

To reassemble your device, follow these instructions in reverse order.
