Lenovo Legion Y520-15IKBN RAM Replacement

Geschrieben von: Noah J Michalek
  • Kommentare: 4
Lenovo Legion Y520-15IKBN RAM Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

25 Minuten

Einleitung

This guide will show you how to replace the RAM in the Lenovo Legion 520-IKBN. You would replace the RAM if computer is acting slower than it is or if your startup screen is a black screen.

  1. xQuDnGbPX6M4KNIc

    • Shut down and unplug your device before proceeding.

    • Remove the thirteen 6.5 mm screws from the base plate using a Phillips #00 screwdriver.

  2. XeWO6QtnafV6GR5S

    • Flip the laptop on its side and wedge a spudger between the base panel and chassis, then pry around the perimeter until the base panel releases.

    • To get a better grip you may want to open the laptop slightly.

    • Lift the bottom panel off of the chassis.

    • During reassembly, make sure that the bottom panel clicks back into place on all four sides of the laptop.

  3. 42lQMpeTrOsL5HEf
    42lQMpeTrOsL5HEf
    AD4Y1oSebsuAvVLD

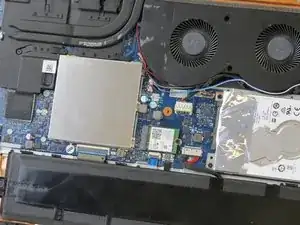

    • There is a piece of plastic covering part of the RAM and the fan. You will need to remove this to get to the RAM.

    • You do not need to remove the battery for the replacement of RAM card.

    I would write down the “you dont need to remove the battery for the RAM raplacement” 2 steps before, I removed it for no reason.

    Jose Carvajal -

  4. Xy4eAFSONywcs4GW
    Xy4eAFSONywcs4GW
    cR2UYspJidT564EI
    BwJFToZcUuPGFr4s

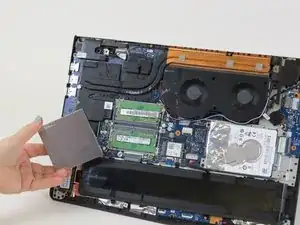

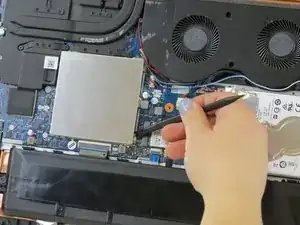

    • There will be a silver square box next to the fan. Use a plastic spudger to pry the small tabs on the side that are holding the silver square on.

  5. OQBk2fOsGHjpwDqA
    OQBk2fOsGHjpwDqA
    VJ4yIVbE1PKAPRNK

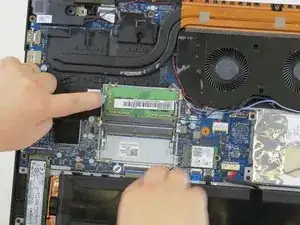

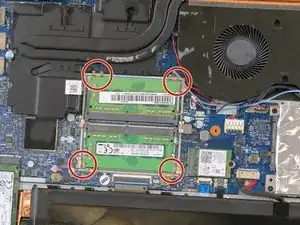

    • The RAM will now be exposed. There are two tabs holding each one of two RAM cards in place. They are on the sides of the RAM cards. Pull the tabs to release the cards.

    • When putting the RAM back together, there are lines on the end of the RAM cards that need to line up.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Noah J Michalek

Mitglied seit: 04/10/18

383 Reputation

3 Kommentare

Hi, can i add any 8gb 2400mhz ddr4 kit bought online? or does it have to be a specific kind?

Thank you for the guide

Azim Hanif -

Here’s a link for the compatible ones https://www.crucial.de/deu/de/upgrade-ko...

Ghassen Gaaliche -

Excellent guide, I’d just remind myself while the body is open its a good opportunity to use some compressed air [dust, crumbs etc.] and to always wear an anti static band when handling the inside of any electronic.

FritzDW -
