Lenovo Legion Y520-15IKBN Wi-Fi Card Replacement

Geschrieben von: Thomas Blayne Aycock
  • Kommentare: 0
Lenovo Legion Y520-15IKBN Wi-Fi Card Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

10 Minuten

Einleitung

  1. xQuDnGbPX6M4KNIc

    • Shut down and unplug your device before proceeding.

    • Remove the thirteen 6.5 mm screws from the base plate using a Phillips #00 screwdriver.

  2. XeWO6QtnafV6GR5S

    • Flip the laptop on its side and wedge a spudger between the base panel and chassis, then pry around the perimeter until the base panel releases.

    • To get a better grip you may want to open the laptop slightly.

    • Lift the bottom panel off of the chassis.

    • During reassembly, make sure that the bottom panel clicks back into place on all four sides of the laptop.

  3. WyGFAKWC6ObHotmd

    • Use a Phillips #00 screwdriver to remove the single screw securing the Wi-Fi card.

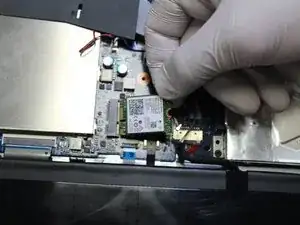

  4. Rp4OeWWRprcx4BqF

    • Pull the Wi-Fi card directly out of its port.

Abschluss

To reassemble your device, follow these instructions in reverse order.
