Lenovo Legion Y530-15ICH Fan Replacement

Geschrieben von: Kaylie Klausing
  • Kommentare: 6
Lenovo Legion Y530-15ICH Fan Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

10 Minuten

Einleitung

Replacing faulty fans is essential to keeping your computer’s insides working. This guide details how to remove the fans to either clean or replace them to ensure the processor does not overheat.

  1. j3pqTsBfbPOMDDsY

    • Ensure the device is powered off.

    • Use a PZ00 screwdriver bit to remove the eleven screws securing the back cover.

    • Five 7 mm screws

    • Six 4 mm screws

  2. XoZYP6uilTcIDfIk
    XoZYP6uilTcIDfIk
    ZFi3xOFVZXDGLdQv

    • Carefully pry the back cover off the computer using an opening pick.

    • Start at the corner of the laptop and work your way around the side. Gently pull up on the cover until it detaches.

  3. ZYMtAwcVkQ63tKR6
    ZYMtAwcVkQ63tKR6
    KkGCNepKXKectEPC

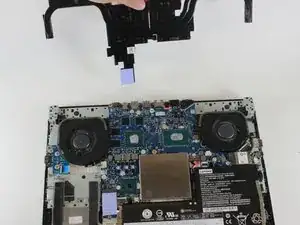

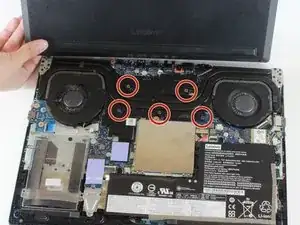

    • Use a JIS #1 screwdriver to loosen the five spring screws located at the middle of the fan piece.

    • Remove the plastic covering after the screws have been loosened.

    • Spring screws will stay attached to the cover.

    There were 6 holding the heat sink on when I did it.

    Bryce Christensen -

  4. XSKwlmnwbC26QCon

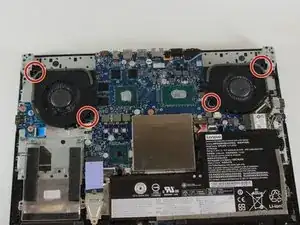

    • Use a JIS #1 screwdriver to remove four 4mm screws securing the fans to the device.

  5. NRLGQx6xLfJBpFHN

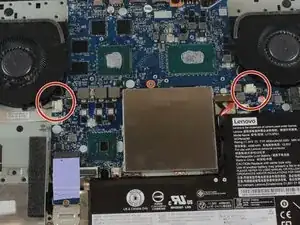

    • Unplug the wires connecting the two fans to the motherboard.

    • When doing this, tug carefully from side to side.

  6. 51Uyn2ojZN6GEnXU
    51Uyn2ojZN6GEnXU
    c54EdlkebYsqgMBi

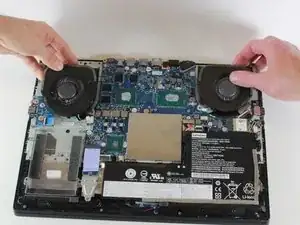

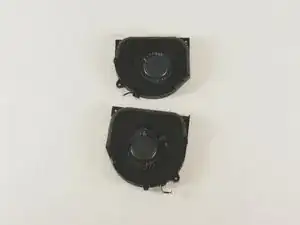

    • Lift the fans out of their positions and remove them from the device.

    Don't forget to pick up thermal paste so you get a good contact between the CPU and GPU and the heat sinks!

    Bryce Christensen -

Abschluss

To reassemble your device, follow these instructions in reverse order.
