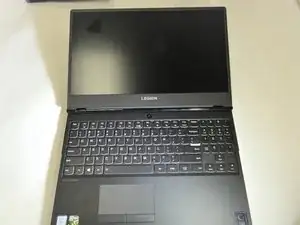

This guide illustrates how to remove the screen for a Lenovo Legion Y530-15ICH which may become pixelated or damaged. A user may even want to replace the factory screen with a higher quality screen for better performance.
Werkzeuge
-
-

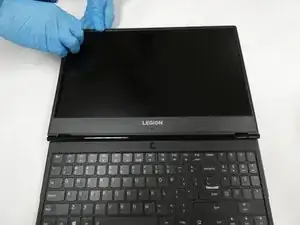

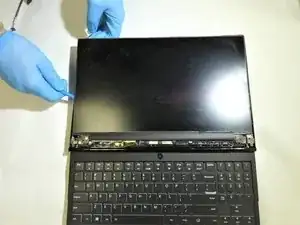

Firmly insert the opening pick under the plastic bezel surrounding the screen.
-

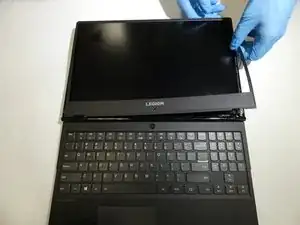

Work your way around the bezel until it is completely removeable.
-

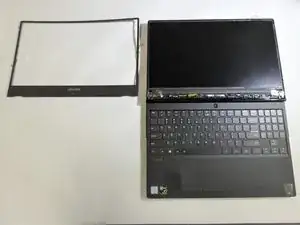

Remove the bezel from the display.
-
-
-

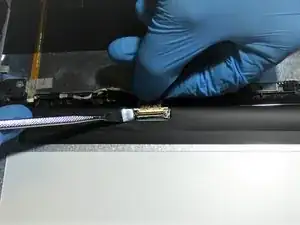

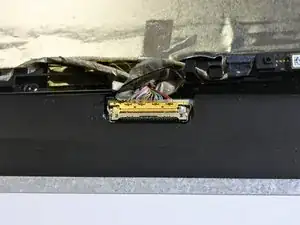

Using a small metal spudger, disconnet the LCD connector.
-

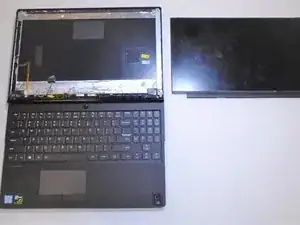

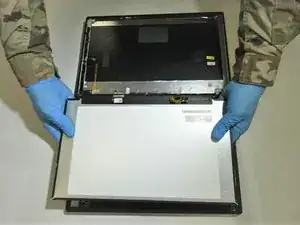

Carefully remove the screen from the device.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
