Lenovo Legion Y530-15ICH Speaker Replacement

Geschrieben von: Kimberly Caroline Winkler

Kommentare: 1

Lenovo Legion Y530-15ICH Speaker Replacement

Schwierigkeitsgrad

Easy

Schritte

Zeitaufwand

25 - 30 Minuten

Einleitung

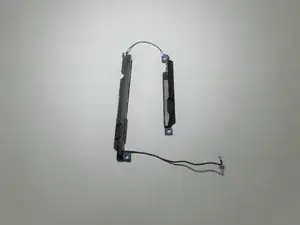

This guide illustrates how to remove speakers from the Lenovo Legion Y5530-15ICH. Users may want to replace damaged speakers or upgrade the speakers.

Werkzeuge

Schritt 1

Ensure the device is powered off.

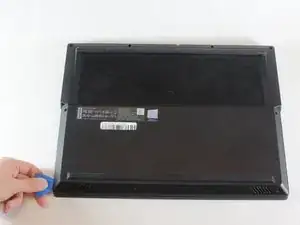

Use a PZ00 screwdriver bit to remove the eleven screws securing the back cover.
Five 7 mm screws
Six 4 mm screws

Schritt 2

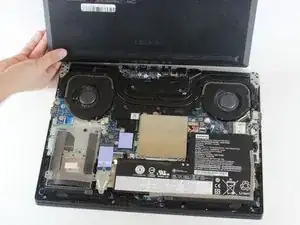

Carefully pry the back cover off the computer using an opening pick.
Start at the corner of the laptop and work your way around the side. Gently pull up on the cover until it detaches.

Schritt 3

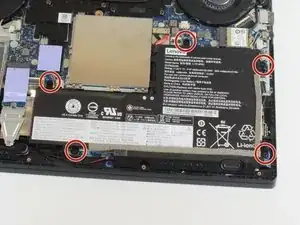

Use a Phillips screwdriver to remove the five 4 mm screws holding the battery in place.

Schritt 4

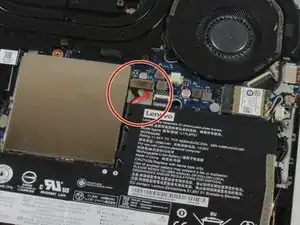

Disconnect the battery cable from its motherboard socket by gently pulling it towards the battery.
Pull parallel to the battery, not straight up.

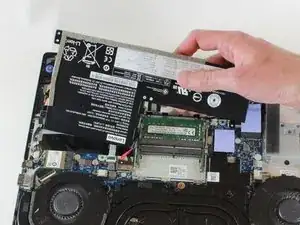

Now you can safely remove the battery.

Hello IFixit people!

I ran into an issue after cleaning out the fans and installing an m.2 SSD in my friend's . After the installation I replaced the back cover and tried to boot the machine. When I plugged in the charger cable the charging indicator light wouldn't boot. I went through all the troubleshooting info on Lenovo and Ifixit and even tested the power supply with no definitive fault. Now i've found a Hotspot on the mobo when the laptop is powered off. Just above the battery to the right of the battery plug are a cluster of capacitors or transistors or something that sit at about 130°C when the laptop is powered off. Any ideas for troubleshooting or advice for a fix would be appreciated!

The board component in question is labeled 1R5910CTS

cheesehead 1010 -
