Lenovo Legion Y530-15ICH USB Port Replacement

Geschrieben von: Kimberly Caroline Winkler
  • Kommentare: 0
Lenovo Legion Y530-15ICH USB Port Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

20 - 35 Minuten

Einleitung

This guide replaces the USB port for the Lenovo Legion Y530-15ICH, overtime with use it make break/get water damaged. This is especially important if the user needs to connect a smartphone.

  1. j3pqTsBfbPOMDDsY

    • Ensure the device is powered off.

    • Use a PZ00 screwdriver bit to remove the eleven screws securing the back cover.

    • Five 7 mm screws

    • Six 4 mm screws

  2. XoZYP6uilTcIDfIk
    XoZYP6uilTcIDfIk
    ZFi3xOFVZXDGLdQv

    • Carefully pry the back cover off the computer using an opening pick.

    • Start at the corner of the laptop and work your way around the side. Gently pull up on the cover until it detaches.

  3. oWddbAKM5EFvPyRx
    oWddbAKM5EFvPyRx
    sxeDmNMTNSOnaMBy

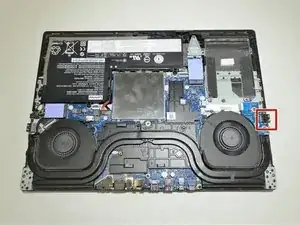

    • Remove the ribbon cable connecting the USB port to the motherboard, located adjacent to the fan unit.

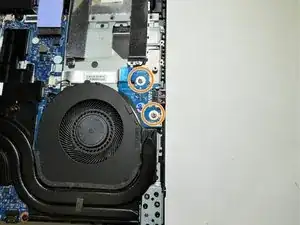

    • Using a JIS #1 screwdriver, remove the two screws securing the USB port to the module.

  4. 13twBr4FfuvGSBij

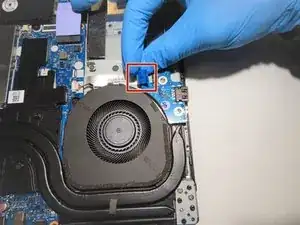

    • Gently disconnect the single ribbon cable with your fingers.

    • Remove the USB port from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
