Lenovo N20p Chromebook I/O Board Replacement

Geschrieben von: Shihao Cao
  • Kommentare: 0
Lenovo N20p Chromebook I/O Board Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

30 - 45 Minuten

Einleitung

here is a guide to help you locate the I/O Board for inspection, repairs, or replacement. The tools you will need are the Phillips #0 Screwdriver, Metal Spudger, and the Spudger.

  1. 21kFq3AXNAGVOuQ2
    21kFq3AXNAGVOuQ2
    oabSuAhXKU3b5Pfc

    • Power down the Chromebook before starting any repair.

    • Remove the two 3.5 mm Phillips #0 screws using a screwdriver.

    • It is only necessary to remove these two screws to complete this step.

  2. YSQSsvk6kFnaMJQM
    YSQSsvk6kFnaMJQM
    NWaIeG6LnJdhKJQu

    • Use the hook of the metal spudger to carefully lift up the keyboard.

    • Lift the keyboard carefully. If you lift too quickly, it might break the two cables that connect the keyboard to the motherboard.

  3. WTIm2UsQYl2FnKCH
    WTIm2UsQYl2FnKCH
    wwSKykaFOKmAkBWb
    mePRl4RS2nrJQDQI

    • Carefully, disconnect the keyboard cable from the motherboard carefully by pulling on the blue tab of the cable.

    • You will now be able to replace the keyboard.

  4. jHVJqOLZ5Fg2BdYC
    jHVJqOLZ5Fg2BdYC
    sSwvFuUeXUnwKRqT
    t6G4E3xhABYrfWo6

    • Remove the two rubber feet of the back of the Chromebook using a metal spudger.

    • Remove six bottom 3.5 mm Phillips #0 screws and two top 5 mm Phillips #1 screws.

  5. BXPwSPGKBdsY1ixp

    • Remove all nine 3.5 mm Phillips #00 screws using a screwdriver.

  6. 3KpwPOBiFJ22WygS
    3KpwPOBiFJ22WygS
    cChoWDULICtfg11V

    • Disconnect the battery cable from the motherboard.

    • Disconnect the touch-pad cable from the motherboard.

  7. BVQrXD6RPAjkvNTr
    BVQrXD6RPAjkvNTr
    1XymMZxcKcxoBJgR

    • Use the metal spudger along the seam between the keyboard and the bottom of the Chromebook to lift up and remove the palm rest assembly.

    • It is normal for it to click loudly when it is released. Corner tags will be harder to release than other tags and will make a loud sound.

  8. duCd6n6PQQYEpwLD
    duCd6n6PQQYEpwLD
    MKYf3L4u1gAlmGyv
    6QLSiXYiybp5OmkR

    • Disconnect the USB cable from the motherboard by pulling the blue tab out of the cable.

    • Remove all five 3.0 mm Phillips #00 screws which connect the battery and motherboard.

  9. GbNMPcIrPc1PKETH
    GbNMPcIrPc1PKETH
    EEQT5YKdGUEoZmVg

    • Remove the battery.

    • It is helpful to lift and hold the battery as shown.

  10. Fx3uSspHATHWkwM5

    • Once the battery has been removed, you need make sure that you have removed the I/O cable that is attached to the I/O Board.

    • Using the flat end of the Spudger tool, carefully lift the I/O Board.

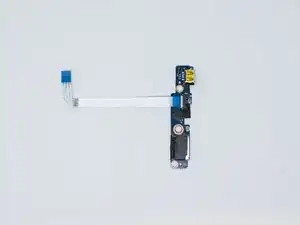

  11. CBgnldmKMHuG5Ouh

    • You will now be able to replace the I/O Board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
