Lenovo N20p Chromebook Keyboard Replacement

Geschrieben von: Shihao Cao
  • Kommentare: 0
Lenovo N20p Chromebook Keyboard Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

5 - 10 Minuten

Einleitung

Here is a guide to help you locate the keyboard for inspection, repairs, or replacement of the Lenovo N20p Chromebook.

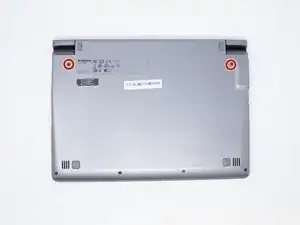

  1. 21kFq3AXNAGVOuQ2
    21kFq3AXNAGVOuQ2
    oabSuAhXKU3b5Pfc

    • Power down the Chromebook before starting any repair.

    • Remove the two 3.5 mm Phillips #0 screws using a screwdriver.

    • It is only necessary to remove these two screws to complete this step.

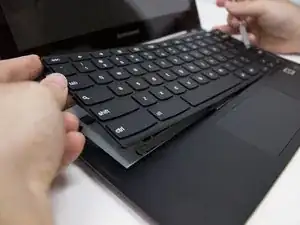

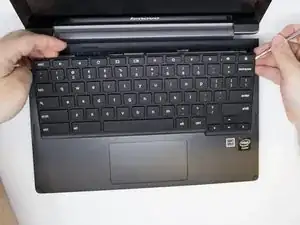

  2. YSQSsvk6kFnaMJQM
    YSQSsvk6kFnaMJQM
    NWaIeG6LnJdhKJQu

    • Use the hook of the metal spudger to carefully lift up the keyboard.

    • Lift the keyboard carefully. If you lift too quickly, it might break the two cables that connect the keyboard to the motherboard.

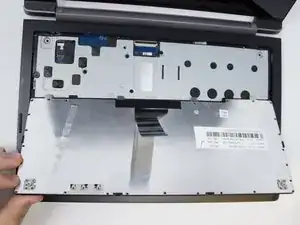

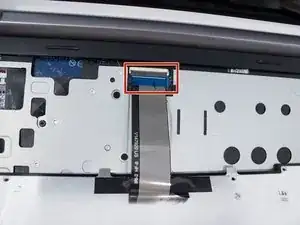

  3. WTIm2UsQYl2FnKCH
    WTIm2UsQYl2FnKCH
    wwSKykaFOKmAkBWb
    mePRl4RS2nrJQDQI

    • Carefully, disconnect the keyboard cable from the motherboard carefully by pulling on the blue tab of the cable.

    • You will now be able to replace the keyboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
