Lenovo N21 Chromebook Keyboard and Trackpad Panel Replacement

Geschrieben von: Alex Cass
  • Kommentare: 3
Lenovo N21 Chromebook Keyboard and Trackpad Panel Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

10 Minuten

Einleitung

To replace the trackpad or keyboard of the Lenovo N21 Chromebook, the whole panel including both parts will need to be replaced.

If you are trying to replace other parts within the Lenovo N21 Chromebook, the trackpad and keyboard panel will have to be removed from the bottom housing in order to access these interior parts.

  1. oPHejFLmyOOmqUHQ
    oPHejFLmyOOmqUHQ
    d6Vp5G3Q5se3cZAe

    • Power down the Chromebook before starting any repair.

    • Opening up your Chromebook voids the manufacturer warranty.

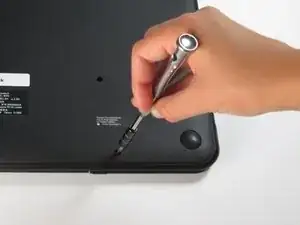

    • Use a screwdriver to remove the six 5.0mm Phillips screws from the bottom housing of the Chromebook.

    Where is write Protect Screw ???
    Please
    Lenovo N21 Chrome Book

    MAC IT -

  2. 4WMTAtsXOOglfc5j
    4WMTAtsXOOglfc5j
    DRMGZHxT6O1dLyaC

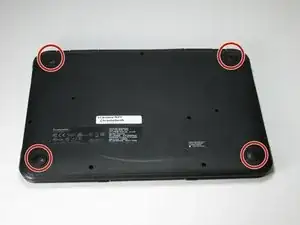

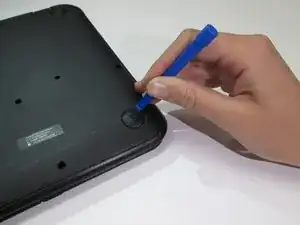

    • Use a plastic opening tool to pry off the four rubber pegs from the bottom housing.

  3. PuvBfHfWbdLIKvgp
    PuvBfHfWbdLIKvgp
    Yq2DegobSFtoXJiL

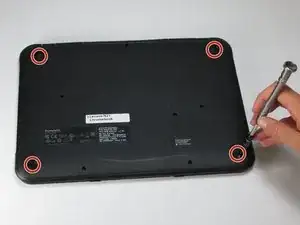

    • Use a screwdriver to remove the four 5.0mm Phillips screws located under the rubber soles.

  4. DmEVoBEZVaraPxav
    DmEVoBEZVaraPxav
    iFrLnTFYuOu4UpDL
    3Hb5jbViTLFupgYq

    • Flip the laptop over and open the screen.

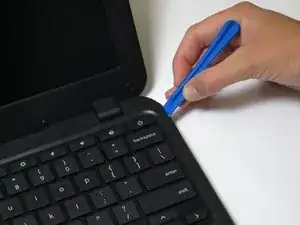

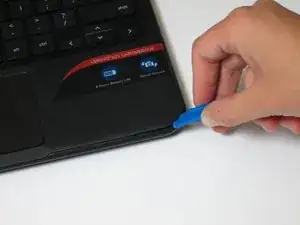

    • Gently pry the keyboard and trackpad panel away from the bottom housing using a plastic opening tool.

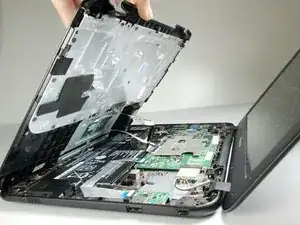

    • Once completely separated, do not immediately pull the panel completely away from the bottom housing. There are wires that are still connecting the panel to the rest of the internals of the Chromebook.

  5. DycCE2SZBKBGpbPe
    DycCE2SZBKBGpbPe
    O6akInfduJKZvy5W

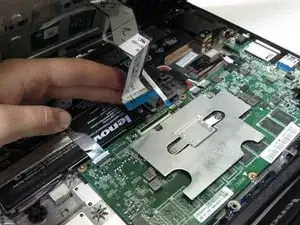

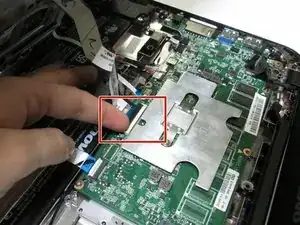

    • Disconnect the keyboard ribbon cable by lifting the ZIF connector lock with a plastic opening tool or fingernail and gently pulling the ribbon cable straight out of its socket.

  6. iGwQRkaTAcEUFCOr
    iGwQRkaTAcEUFCOr
    BMGtTREXcl1wU5dK
    okNltiJWCstbuEpd

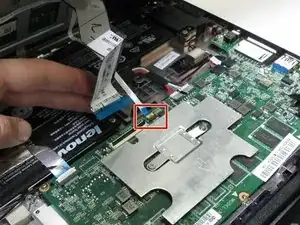

    • Disconnect the trackpad ribbon cable by lifting the ZIF connector lock with a small prying tool or fingernail and gently pulling the ribbon cable straight out of its socket.

    My replacements did not come with the trackpad zif. I had to remove from the old part and move to the new part.

    Michael Selburg -

  7. yHhMJQbfjnBjaVFl

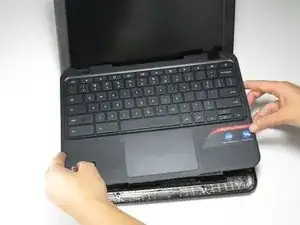

    • Remove the keyboard and trackpad panel away from the device.

    Has anyone gone through the experience of replacing JUST the keyboard? It looks like they are available as a separate component, e.g. https://www.ebay.com/itm/New-for-Lenovo-... but I haven’t found a tutorial on removing the keyboard from its bezel. Thanks!

    mbates -

Abschluss

To reassemble your device, follow these instructions in reverse order.
