Lenovo N22 Chromebook Speakers Replacement

Geschrieben von: Kevin Yerina

Kommentare: 9

Lenovo N22 Chromebook Speakers Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

30 - 35 Minuten

Einleitung

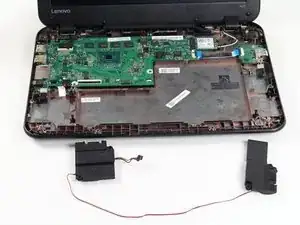

This guide will cover the steps needed to remove the speakers. The speakers may need to be removed if the user is experiencing distorted or no audio.

Werkzeuge

Ersatzteile

Lenovo Chromebook 11 N22 Speaker Set

Schritt 1

Power down the Chromebook before starting the repair.
Opening the Chromebook voids the manufacturer warranty.
Flip the Chromebook so that the bottom is facing up.
Use a Phillips #1 screwdriver to remove the six 6.6 mm screws on the bottom.
Use a spudger to remove each of the 4 rubber feet.
Use a Phillips #1 screwdriver to remove the four additional screws under the rubber feet.

There is also a screw under each of the 4 rubber feet that must be removed.

Aaron Kurtz - 07/09/17

Thank you for that little bit of important information. I almost torn apart the keyboard using too much force :)

Anthony Hillier - 14/12/17

@Aaron Kurtz, I just updated the guide. I’ll see if I can add any pictures later.

John Gillen - 13/12/17

I feel like i’m doing something wrong. It’s hard to get the new keyboard pushed in. Im afraid i’m going to break it.

Jenna Bowman - 14/12/17

I feel like I am doing something wrong. I got the keyboard off no problem. Put the replacement on and I feel like it’s going to break when I try to push it back in the frame.

Jenna Bowman - 14/12/17

You should update the guide. As Aaron Kurtz told long time ago there are screews under the feet. It is said in the comments, but not in the guide. I’m afraid somebody may break the keyboard…

Andreu Rigo Gost - 22/10/19

Schritt 2

Flip the Chromebook back over and open the screen.
Wedge the plastic opening tool between the keyboard and the bottom of the Chromebook.

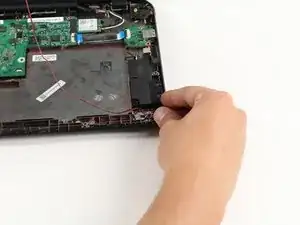

Run the plastic opening tool along the seam between the keyboard and the bottom of the Chromebook until the keyboard moves freely. Several tabs will pop out.
It is normal for the tabs to make a loud click when released. The corner tabs will be harder to release than the others and will make a louder click.

Schritt 3

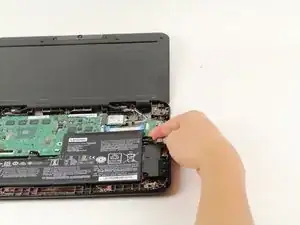

Once the keyboard is released, grab the two top corners closest to the screen and slowly lift the keyboard up.
Do not lift the keyboard quickly or you might break the two cables that connect the keyboard to the motherboard.
Disconnect the cables by lifting up the retaining flaps on the black ZIF connectors.
Slowly pull the cables up and out of the connectors.

Schritt 4

Lift the keyboard up and off the back panel, exposing the motherboard and battery.

Hmmm. So I found that once I had got the keyboard section off the motherboard/battery section that there was a metal plate which was holding the keyboard in place. I found a YouTube video, White Angel I think, and showed how you could get the plate off to be able to replace the keyboard.

martin rodley - 29/04/18

There are screws under the rubber pads on the bottom that need to be taken out as well. I fix these as a school where we literally have hundreds of these. There is no metal plate as described in the comment above. Rubber pads have letters and are not interchangeable with the other corners.

Ed Asner - 04/09/19

Ed, he's talking about the metal plate fastened to the keyboard once you remove the palm rest assembly. You’re referring to removing the initial external bottom screws.

White Angel shows us how to replace the keyboard in the assembly, which saves you about $20 in parts vs. buying another full palm rest assembly.

The only issue is that she pops the plastic tabs largely holding the metal plate in place- and never repairs them. So the keyboard looks nonfastened and gerry-rigged.

Might be worth spending the extra $20 for the full assembly in the long run.

Cheers

Keith Powell - 15/03/20

Schritt 5

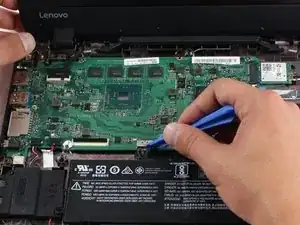

Separate the battery cable from the motherboard by wedging the edge of a plastic opening tool between the black cable connector and the silver socket on the motherboard.
Pull the battery cable straight towards you, away from the silver socket.

Schritt 6

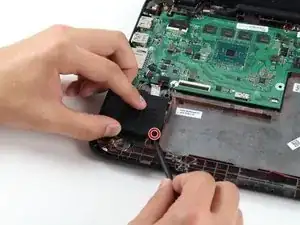

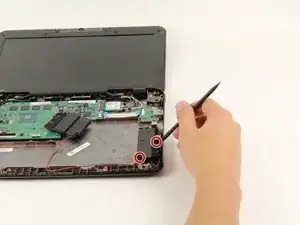

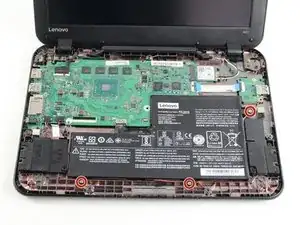

Use a Philips #1 screwdriver to remove the three 4.3 mm screws securing the battery.

Schritt 7

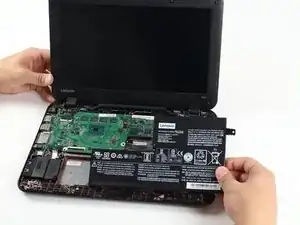

Lift up on the tabs that were held down by the screws to remove the battery.

Schritt 8

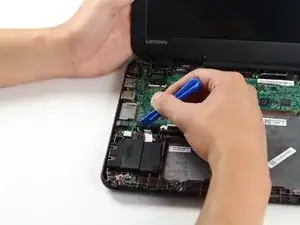

Use the edge of the opening tool to separate the speaker cable connector from the black socket on the motherboard.
Pull the cables towards you and away from the socket.
