How to replace the Lenovo N23 Chromebook motherboard

  1. M5HuT63FgkkOXmau
    M5HuT63FgkkOXmau
    lnSWe35PjagULLq1
    • Before starting, make sure that the laptop is powered off and completely unplugged from the charger.

    • Remove the eight 6.0 mm screws holding the back into place using a Phillips #0 screwdriver.

  2. RnPPDCNHtcInIS2m
    • Flip the device over.

    • Slide a plastic opening tool between the back cover and keyboard.

    • Carefully pry upwards until you hear a click.

    • Following the seam, slide the opening tool all the way around the front cover, prying upwards occasionally until the keyboard and trackpad are loose from the back cover.

    • Lift the keyboard panel up to reveal the internals.

    • Don't lift the keyboard panel too violently, as there is still a cable attachment to the motherboard.

  3. oOXbJtcBq5lYHpEv
    oOXbJtcBq5lYHpEv
    IXtx62NLSXRs6CMY
    TqdbPwQJWpYoKTLG
    • You can now access the internals of the computer.

    • Disconnect the two ribbon cables that connect from the motherboard to the front cover.

    • Using the iFixit opening tool, flip up the black tab holding keyboard ribbon cable and then pull the cable out.

    • Using the opening tool, flip the white tab holding the mouse ribbon cable and then pull the cable out.

  4. GgfIPfONr4SpeF1n
    GgfIPfONr4SpeF1n
    BuvLORy4SJNboVgl
    • Lift the keyboard panel from the case and fully remove it from the device.

  5. OnQ6wFuIiDdKf4s1
    • Using the Phillips #0 screwdriver, remove the two 3 mm screws holding the battery in place.

  6. 5VKHmCoVyDPmiHNU
    5VKHmCoVyDPmiHNU
    MP5LAQOlEQBIgdUM
    GKBirhue45x4HijN
    • Disconnect the battery cable using a plastic opening tool by pulling on the black plastic lip.

    • Lift the battery out of the laptop.

  7. NSPc6uiZmiYdKPeX
    NSPc6uiZmiYdKPeX
    GuFPTQjA1DFryH6T
    T4ZOjP1NqEMPVPQh

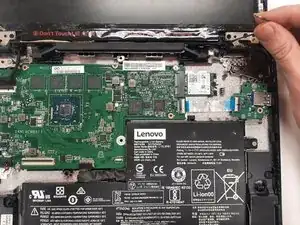

    • Use a plastic opening tool to disconnect the two coaxial cables from the Wi-Fi card.

    • Tuck the two wires out of the way.

  8. vSdh3HqHmKN3vIGF
    vSdh3HqHmKN3vIGF
    GofVu14HUKYjPIhW
    wRmldloIMWFElHEU

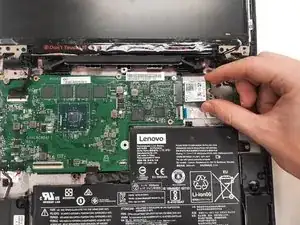

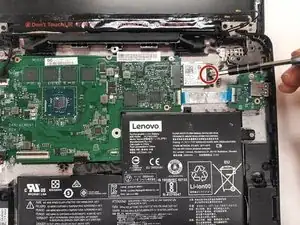

    • Remove the single 3.0 mm Phillips #1 screw holding the Wi-Fi card using a Phillips #1 screwdriver.

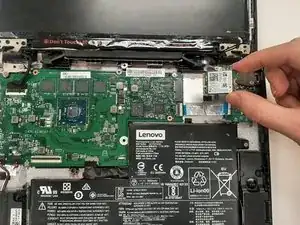

    • Using your hands, carefully pull the Wi-Fi card sideways out of the port on the motherboard.

  9. xZORjwtIa6YthXKH
    xZORjwtIa6YthXKH
    mo4u5s1eMBVdAcQJ
    S2vvAkc6bBGpmEna

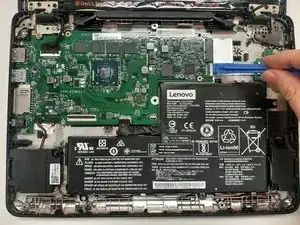

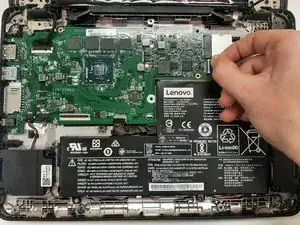

    • Remove the USB ribbon cable by lifting up on the white tab using a plastic opening tool and then pulling the cable out.

  10. FYUVmTS4rRYRbWVd
    FYUVmTS4rRYRbWVd
    gslKg1P3Bk6ICSB1

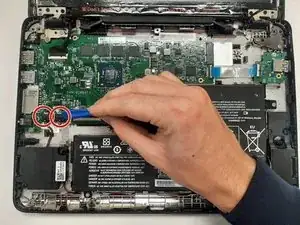

    • Disconnect the two black connectors on the bottom left side of the motherboard by pulling back on the lip with a plastic opening tool.

  11. vKdEIaKf1dtuO6YM
    vKdEIaKf1dtuO6YM
    DhpIg5fHBDgVGaaf
    KWhqPXwyrpc1DAWM

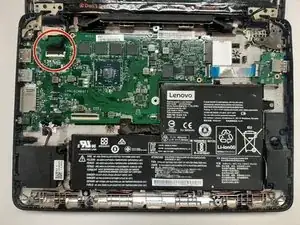

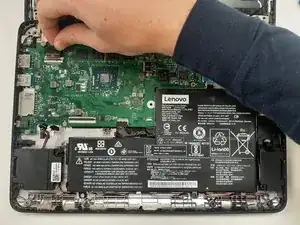

    • Disconnect the video cable by lifting upwards on the black tab using a plastic opening tool and pulling the cable out.

  12. QSCLu4hfeRBYkWI5
    QSCLu4hfeRBYkWI5
    4H2GVGuxodbdxOxH
    u3DAOTxUUfWBRYEV

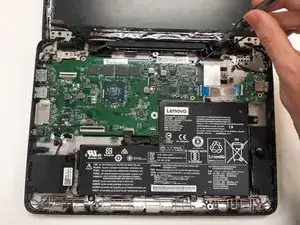

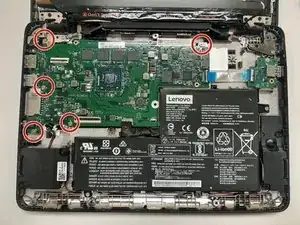

    • Remove the five 3.0 mm screws that hold the motherboard in place with a Phillips #0 screwdriver.

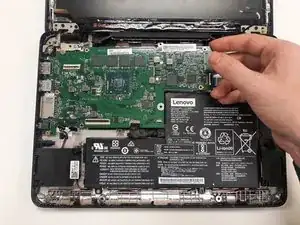

    • Lift the motherboard carefully out of the laptop, being sure to not let it get caught on any cables.

Abschluss

To reassemble your device, follow these instructions in reverse order.
