Lenovo S20-30 Display Monitor Replacement

Geschrieben von: Alexis Wesling
  • Kommentare: 1
Lenovo S20-30 Display Monitor Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

7 Minuten

Einleitung

The screen may become unresponsive in your Lenovo S20-30 netbook requiring you to replace the display monitor. Displays are around $60 depending on where you buy it. Before replacing your display monitor turn off the computer to avoid risk of electric shock. There are many components to your monitor so it is common for parts to break or disconnect. By following these steps, you can successfully achieve detaching the old display monitor to reassemble the new one.

  1. FOFtvSPpIBFbjWPE

    • Flip the Lenovo S20-30 over so that the bottom panel is facing upward.

  2. ZyM6HiIOG4jlbhUl

    • Slide the manual battery latch to the unlock position, so that the red is showing.

  3. djeZO3DQ3PCeqsqk
    djeZO3DQ3PCeqsqk
    P4FSmCTQiEVXkoYG

    • Slide and hold the spring-loaded battery latch on the other side (right) while sliding the battery out of the computer.

    • Grab new Lenovo S20-30 battery for replacement.

  4. rSIthAwBcUCWJAQC
    rSIthAwBcUCWJAQC
    YL1AdCxIlHEErIjI

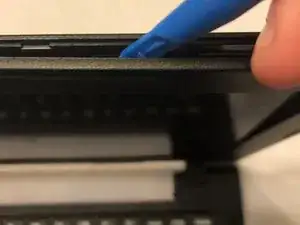

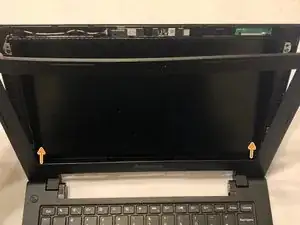

    • Pry open the frame using a plastic opening tool.

    • Pull frame upward to remove it.

  5. CDaCG1XR5OsOevXQ
    CDaCG1XR5OsOevXQ
    WIHFEHOnIEFPvhpQ

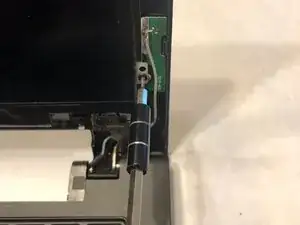

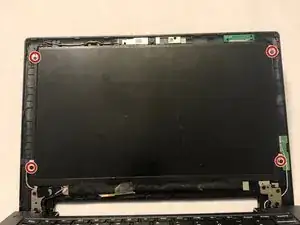

    • Unscrew four M2 x 3mm screws using a Phillips #000 screwdriver.

  6. o6Zp3nQSM6QQRsCq
    o6Zp3nQSM6QQRsCq
    nK6tIIkxHXQiVYqF

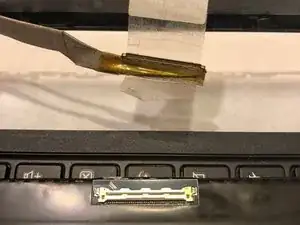

    • Slowly remove display monitor to reveal the connector.

    • Remove the connector by gently pulling it out.

  7. LjuPrmmZETajvEIM

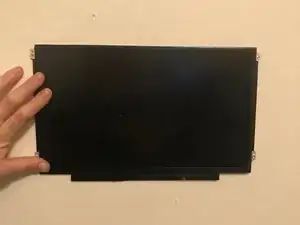

    • Replace with new display monitor.

    hi,

    I did it exactly how it was shown and it worked.

    Thank you very much!

    maria.mia -

Abschluss

To reassemble your device, follow these instructions in reverse order.
