Lenovo Tab 2 A8 Audio/Video Port Replacement

Geschrieben von: Taylor Smith
  • Kommentare: 0
Lenovo Tab 2 A8 Audio/Video Port Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

15 Minuten

Einleitung

This guide will explain how to remove the back cover and motherboard on your device in order to access the A/V port. This guide will provide detailed steps for replacement of the A/V port.

  1. 6qECp5iWUTFMapUe
    6qECp5iWUTFMapUe
    qXi1TqxFYKNmB4Dr
    O4xScjB5KuilPhxZ

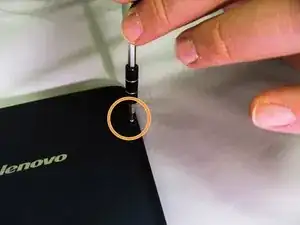

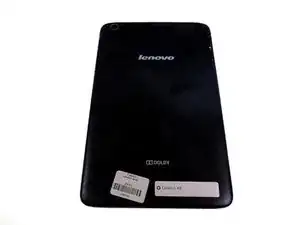

    • Place the tablet face down on a soft, stable surface that will protect the screen.

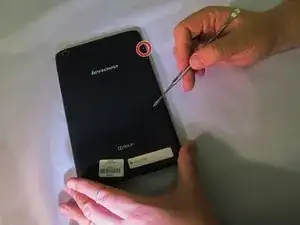

    • Next, Scrape off the seal over the screw in the back of the tablet with a Metal Spudger.

    • Use the Phillips #000 Screwdriver to remove the M1.4 × 2.5 screw.

    • If the seal covering the screw has already been removed, please proceed to the next step in the process.

    • As the screw is small, you may wish to extract it using a pair of tweezers.

  2. JJsjKoQNdvvAwVmq
    JJsjKoQNdvvAwVmq
    WEnfcVIb5QFdqVa2
    iVTWtV356NURBbs6

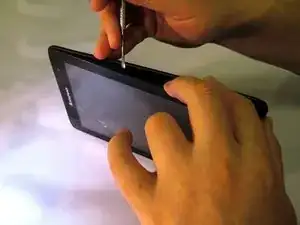

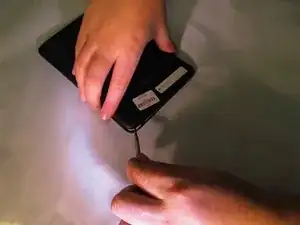

    • Starting on the side, work your way around the the tablet to pop off the back cover. You will want to utilize a metal Spudger for this.

    • Some force may be required initially to pry the back cover off.

    • Note that the button tabs for this device are loose inside the case and will fall out when opening.

  3. R5FuFdJYPb2NjDOE
    R5FuFdJYPb2NjDOE
    EZCkoUwJuIY6Dyq2
    OsvmeUJeXR2HDjAQ

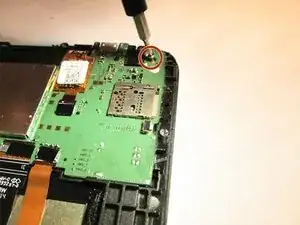

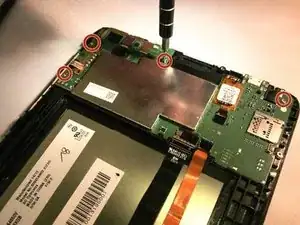

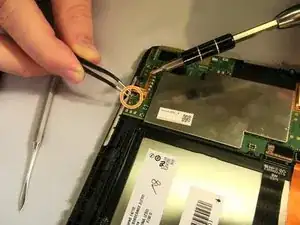

    • Using the Phillips #000 screwdriver, remove the four M1.4 × 2.5 screws holding the motherboard in place.

    • Because the screws are small, it is a good idea to remove them with a pair of tweezers.

  4. JWcPp36msBHPyMBx
    JWcPp36msBHPyMBx
    vj2Qds2OUlKdATCS
    UEOmqf2nsR6OgTIS

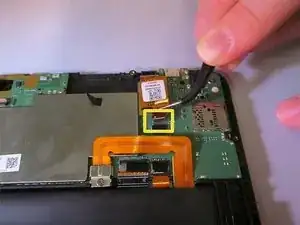

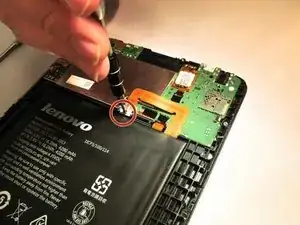

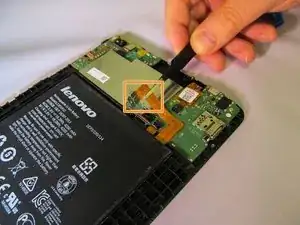

    • Remove the M1.4 × 2.5 screw securing the battery lead to the battery with the Phillips #000 screwdriver.

    • With a pair of tweezers, gently move the battery lead so it will not obstruct the motherboard.

    • With a pair of tweezers, carefully unplug the strip connecting the screen to the motherboard.

    • The strip connecting the screen to the motherboard is firmly in place and may require some careful use of strength to unplug it.

  5. KxyMRiDapHDeawLZ

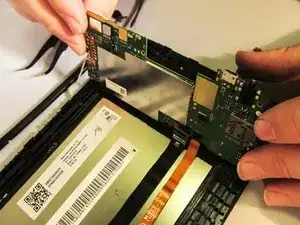

    • Remove the motherboard by lifting the top edge and pulling outward to free it from the small tabs that hold it in place.

    • The small tabs can be broken if the motherboard is pried up too forcefully.

    • The button tabs are fastened to the motherboard by a small adhesive strip. Take care in removing the motherboard to avoid tearing the wires.

  6. axqt4uYh5R2V2MRy
    axqt4uYh5R2V2MRy
    Ov1MNpqP43NMGpTH

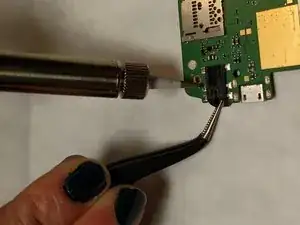

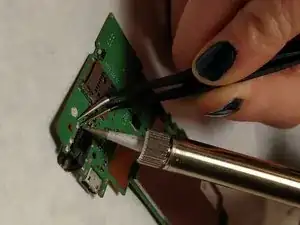

    • Flip the motherboard to its back side.

    • Desolder the six audio/visual port contact points.

    • Use tweezers to remove the existing audio jack to remove from the motherboard entirely.

Abschluss

To reassemble your device, follow these instructions in reverse order.
