Lenovo Tab 2 A8 Rear-Facing Camera Replacement

Geschrieben von: Tim Gales
  • Kommentare: 0
Lenovo Tab 2 A8 Rear-Facing Camera Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

8 Minuten

Einleitung

This guide illustrates the procedure to remove the rear-facing camera of your device.

  1. 6qECp5iWUTFMapUe
    6qECp5iWUTFMapUe
    qXi1TqxFYKNmB4Dr
    O4xScjB5KuilPhxZ

    • Place the tablet face down on a soft, stable surface that will protect the screen.

    • Next, Scrape off the seal over the screw in the back of the tablet with a Metal Spudger.

    • Use the Phillips #000 Screwdriver to remove the M1.4 × 2.5 screw.

    • If the seal covering the screw has already been removed, please proceed to the next step in the process.

    • As the screw is small, you may wish to extract it using a pair of tweezers.

  2. JJsjKoQNdvvAwVmq
    JJsjKoQNdvvAwVmq
    WEnfcVIb5QFdqVa2
    iVTWtV356NURBbs6

    • Starting on the side, work your way around the the tablet to pop off the back cover. You will want to utilize a metal Spudger for this.

    • Some force may be required initially to pry the back cover off.

    • Note that the button tabs for this device are loose inside the case and will fall out when opening.

  3. FfyNeTcO4sKEdeSL
    FfyNeTcO4sKEdeSL
    bWL2IugESfIfNdTk

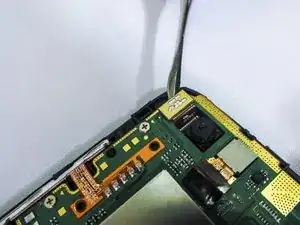

    • Using a spudger, pry upward on the camera connector to free it from the motherboard.

  4. cCK2GPNVCbI6xGiC

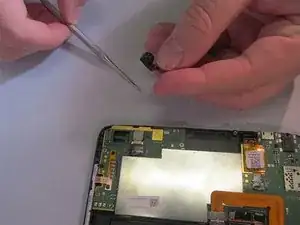

    • Use tweezers to grasp the camera connector and lift the camera out of its socket.

Abschluss

To reassemble your device, follow these instructions in reverse order.
