Lenovo ThinkPad E570 Wi-Fi Card Replacement

Geschrieben von: Peter Swanson
  • Kommentare: 0
Lenovo ThinkPad E570 Wi-Fi Card Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

10 - 15 Minuten

Einleitung

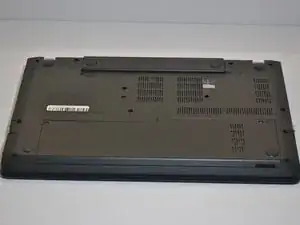

  1. ebS5jEcsssQXSapu

    • Turn the laptop over so that the bottom is facing upwards.

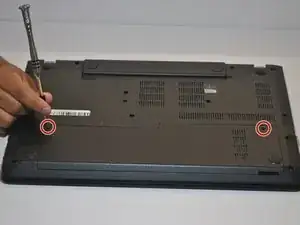

  2. LkaSxEFLmuqMJlRs

    • Unscrew two captive 5 mm screws from the back panel of the laptop using a Phillips #00 screwdriver.

    • Carefully remove the back panel.

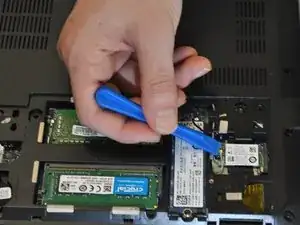

  3. kH2eZbSGj3bEMCEI

    • Carefully remove the black and white coaxial cables that are connected to the chip using an opening tool.

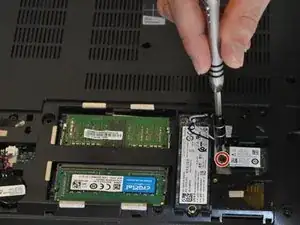

  4. 5TGUpwrxvPo3jWsm

    • Remove the single 4 mm screw from the Wi-Fi card using a Phillips #0 screwdriver.

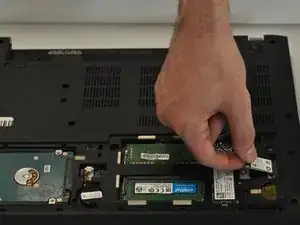

  5. GM1fOyFpPdaehjra

    • When the screw is removed, the chip will pop up at an angle.

    • Carefully grab the chip and pull outward to remove it from the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
