Lenovo ThinkPad Edge E520 Hard Drive Replacement

Geschrieben von: David Skarbek
  • Kommentare: 0
Lenovo ThinkPad Edge E520 Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

15 Minuten

Einleitung

This guide provides thorough instruction on the proper replacement technique for the Lenovo ThinkPad Edge E520's Hard Drive.

  1. 3GuSG6PKKjGb4bo6

    • Power off and unplug the computer before the start of these steps.

    • Close the laptop lid.

  2. YkciHJTeFBfAw5eJ
    YkciHJTeFBfAw5eJ
    vjSEACZJ6YcwI3Xj

    • Flip the computer so that the back is facing upwards.

    • Locate the switch used to release the battery.

    • The switch should be located towards the hinge of the laptop near the battery pack and have a lock icon associated with it.

  3. q6DXOZAagbFgqMYK
    q6DXOZAagbFgqMYK
    LUe3EFSNLI5SKJx5

    • Slide the switch towards the unlocked lock icon.

    • While holding it in the unlocked position, slide the battery towards the hinge.

    • Fully separate the battery pack from the back of the laptop.

  4. ZAdsSHShovOWa2uO
    ZAdsSHShovOWa2uO
    xj1UKZREgOmArsxB

    • Flip over the laptop and position it with the battery being furthest away from you.

    • Remove the four screws on the edges of the T-Shaped plate with a Phillips #0 screwdriver.

    • Remove the T-Shaped plate from the back of the computer. It should come off easily if all four aforementioned screws are removed.

    • Screw length 6.35 mm, head 3.175 mm

  5. R1uslHhNhSkfe52h
    R1uslHhNhSkfe52h
    cnSfVFKC2qE3k3NC
    HhGMTJKDTKAWHStR

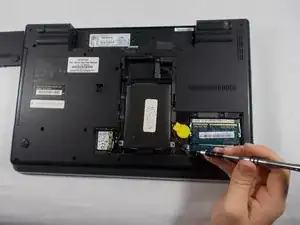

    • Position the laptop so that the battery compartment is facing away from you.

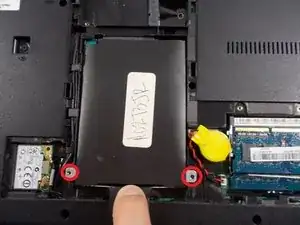

    • Remove the two bracket screws on the bottom of the hard drive.

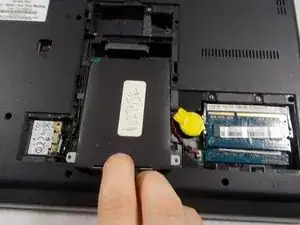

    • Gently lift out the hard drive with its bracket still attached.

    • Remove the bracket from the hard drive.

Abschluss

To reassemble your device, follow these instructions in reverse order.
