Lenovo ThinkPad Edge E530 CMOS / BIOS Battery Replacement

Geschrieben von: ZFix
  • Kommentare: 2
Lenovo ThinkPad Edge E530 CMOS / BIOS Battery Replacement

Schwierigkeitsgrad

Very easy

Schritte

1

Zeitaufwand

2 - 5 Minuten

Einleitung

Lenovo ThinkPad Edge E530 / E530c - how to change CMOS/BIOS Battery.

_________________________________________________

  1. APj4ZSYnTZEqPR3t
    APj4ZSYnTZEqPR3t
    JFXUHZ4rcwQFMUdW
    YP3lL3tDmenD6ko6

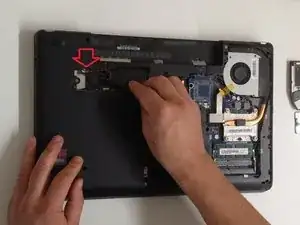

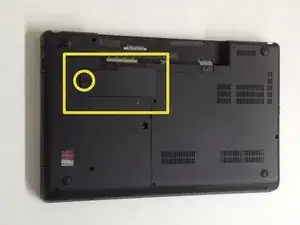

    • Remove the CMOS Battery Cover.

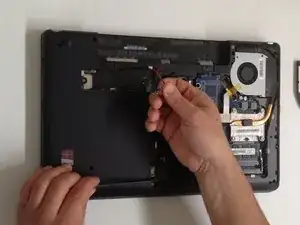

    • Disconnect the CMOS Battery Cable.

    • Use a sharp edge of a plastic tool to unstick the battery.

    • This is Lithium Battery, 3.0 Volts, model CR2032, but it's extra packed with wires.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

ZFix

Mitglied seit: 09/12/13

188213 Reputation

2 Kommentare

Would the same apply to my E520 ThinkPad Edge? It is sealed with yellow plastic tape and I can see that the red/black wiring attaches to the battery on one side.

Jane Fennell -

Mine is black wrapper wit one wire connected on each side

Lance Willadsen -
