Lenovo ThinkPad Edge E530 DDR3 SODIMM SDRAM Replacement

Geschrieben von: ZFix
  • Kommentare: 0
Lenovo ThinkPad Edge E530 DDR3 SODIMM SDRAM Replacement

Schwierigkeitsgrad

Easy

Schritte

2

Zeitaufwand

5 Minuten

Einleitung

How to change / upgrade SDRAM Memory

How to fully disassemble Lenovo ThinkPad E530 - Video manual:

  1. aEBb2jXEZ26jSwch
    aEBb2jXEZ26jSwch
    AXc5T3EoJU4cF4SV
    hOJggGj6NQFBqGp2

    • Switch-off the Laptop and remove the battery.

    • The HDD/Memory Cover is held by 3x Phillips screws. Remove them.

    • Remove the Cover.

  2. FdRVvOT2mriGRgZh
    FdRVvOT2mriGRgZh
    FrTGxrpSnKarNZcL
    5Vb11HC4Sr6MItfH

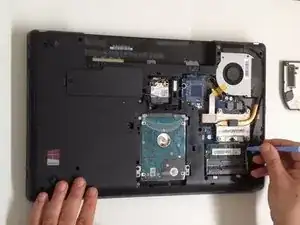

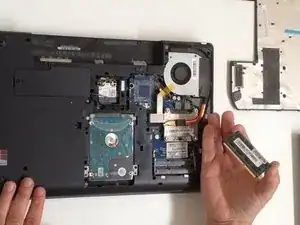

    • This model has 2x slots for SODIMM SDRAM.

    • For ThinkPad Edge E530 you can install 2x modules DDR3 SODIMM up to 16GB.

    • For ThinkPad Edge E530c you can install 2x modules DDR3 SODIMM up to 8GB.

    • Did you do it successfully?

Abschluss

To reassemble your device, follow these instructions in reverse order.
