Lenovo ThinkPad Edge E530, E530c Keyboard Replacement

Geschrieben von: ZFix
  • Kommentare: 0
Lenovo ThinkPad Edge E530, E530c Keyboard Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

10 - 15 Minuten

Einleitung

Lenovo ThinkPad Edge E530, E530c - how to change the Keyboard


__________________________________________

  1. aEBb2jXEZ26jSwch
    aEBb2jXEZ26jSwch
    AXc5T3EoJU4cF4SV
    hOJggGj6NQFBqGp2

    • Switch-off the Laptop and remove the battery.

    • The HDD/Memory Cover is held by 3x Phillips screws. Remove them.

    • Remove the Cover.

  2. 4s1qFfXWQGOITvbZ
    4s1qFfXWQGOITvbZ
    IJ5RsrIJF23ELm5O
    wd1XmSgBmpCP1eYb

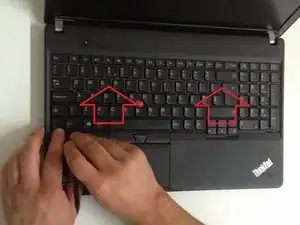

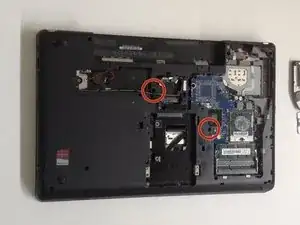

    • There are 2 x screws securing the keyboard. You can find them by a small KB symbol.

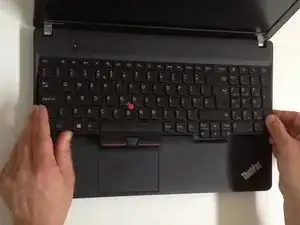

    • Slide the keyboard forward.

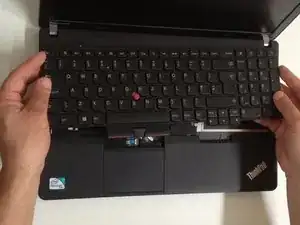

    • Lift the keyboard at the bottom.

  3. r6JNMQPEXpCutWUr
    r6JNMQPEXpCutWUr
    4h3XHjcaQxOKMGF6
    AnAOcCMCnuscSU3M

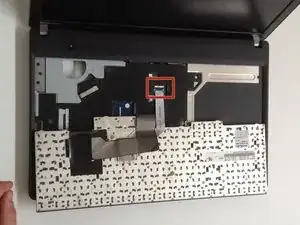

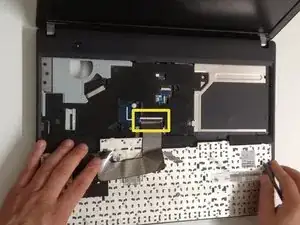

    • Under the keyboard there are two flex cables connected to the motherboard:

    • The smaller one is for the mouse buttons and the legendary TrackPoint.

    • The bigger one is for the KB.

    • Disconnect them and remove the KB.

Abschluss

To reassemble your device, follow these instructions in reverse order.
