Lenovo ThinkPad Edge E530, E530c Processor / CPU Replacement

Geschrieben von: ZFix
  • Kommentare: 3
Lenovo ThinkPad Edge E530, E530c Processor / CPU Replacement

Schwierigkeitsgrad

Difficult

Schritte

6

Zeitaufwand

15 - 20 Minuten

Einleitung

Lenovo ThinkPad Edge E530, E530c - how to replace / upgrade the Processor.

_________________________________________________

  1. aEBb2jXEZ26jSwch
    aEBb2jXEZ26jSwch
    AXc5T3EoJU4cF4SV
    hOJggGj6NQFBqGp2

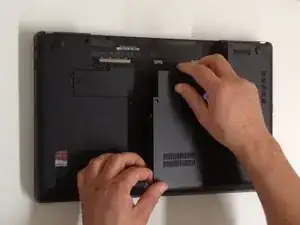

    • Switch-off the Laptop and remove the battery.

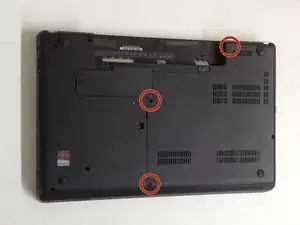

    • The HDD/Memory Cover is held by 3x Phillips screws. Remove them.

    • Remove the Cover.

  2. FshJdSYI4egCmka3
    FshJdSYI4egCmka3
    tdUVaanDRaBLFOGB
    SXrSKrBoJgOVfPAP

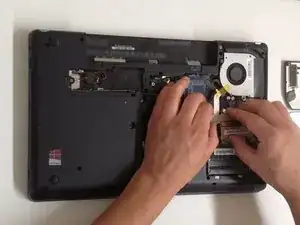

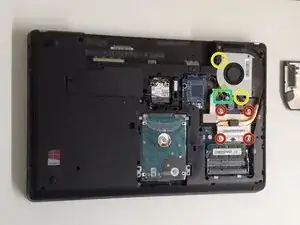

    • Disconnect the Fan cable.

    • Remove the 2x screws from the Fan module.

    • Unscrew 4x screws around the processor.

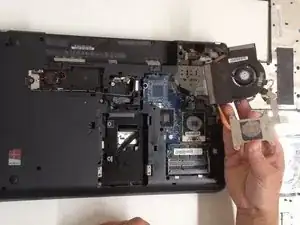

    • Carefully lift the Cooling System.

  3. bduuD3B45K6gLfg2
    bduuD3B45K6gLfg2
    YSUiIcJZRLUbLxDE
    QGB1MBHuQeU5ZTvc

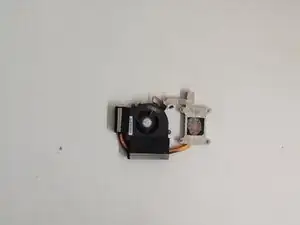

    • Use a lint-free cloth and isopropyl alcohol to clean the old thermal compound.

    • If the thermal compound is solidified, you can use a flat end of any plastic tool to scrape it off.

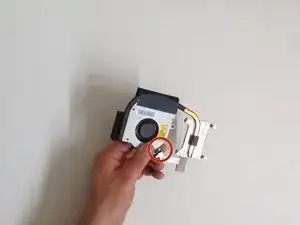

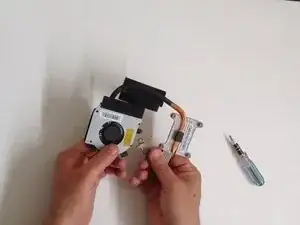

    • Separate the Fan from the Heat-sink.

  4. OZMIVv3dXQZLBMLa

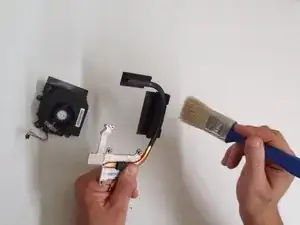

    • Use a soft anti static brush and clean the Heat-sink on the inside.

    • Before installing a new Cooling System or reinstalling the old one, you must clean the processor from the old thermal compound and put a new one.

  5. OojKRSDdSAsdlkoP
    OojKRSDdSAsdlkoP
    DeiVkSJLlSU5UdIV
    OTUNvZcsWHVEXuyJ

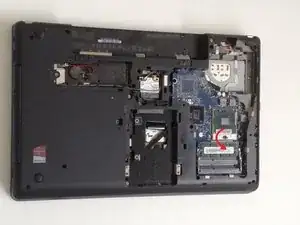

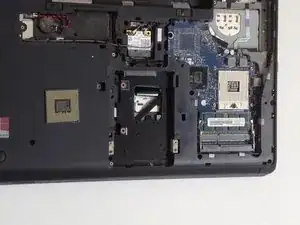

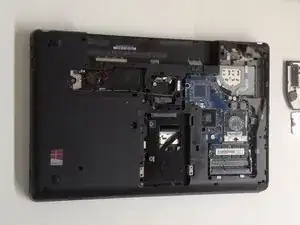

    • Clean the old thermal compound. Use a lint-free cloth and isopropyl alcohol to clean the old thermal compound.

    • If the thermal compound is solidified, you can use a flat end of any plastic tool to scrape it off.

    • To remove the Processor, turn the CPU socket screw 90 degrees to open the socket.

    • Lift the Processor from the socket.

    • Be careful to lift straight up without bending the CPU pins.

    Socket screw must be turned 180 degrees to the left until the tab on the screw reaches the stop tab on the socket. At this point the CPU will lift easily out. Carefully place new CPU on socket so little gold arrow on the corner of the chip is oriented to face corner on socket with missing pin hole. CPU should drop easily into place. With CPU in place turn set screw 180 degrees to the right until screw tab meets stop tab on socket.

    GBMac -

  6. dMpLpHPCU6wN5Iq4
    dMpLpHPCU6wN5Iq4
    YwIBTZ5uCYAEQonB

    • Before you place the new Processor, be sure the socket screw is in the open position.

    • Delicately place the Processor into the socket.

    • Close the socket with the socket screw.

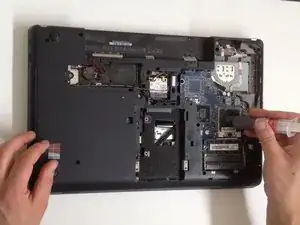

    • Put thermal compound on the processor surface and carefully install back the Cooling system.

    Thermal compound should be applied in a thin but effective uniform layer over entire metallic thermal contact area on the top of the chip.

    GBMac -

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

ZFix

Mitglied seit: 09/12/13

188213 Reputation

Ein Kommentar

Bonjour, peut-on remplacer le CPU par n'importe quel autre plus puissant, ou y a-t-il des restrictions ?

francoislaurent -
