Lenovo ThinkPad Edge E530 HDD Replacement

Geschrieben von: ZFix
  • Kommentare: 2
Lenovo ThinkPad Edge E530 HDD Replacement

Schwierigkeitsgrad

Easy

Schritte

2

Zeitaufwand

5 - 10 Minuten

Einleitung

Lenovo ThinkPad Edge E530 / E530c - how to change / upgrade the SATA HDD

_________________________________________________

  1. aEBb2jXEZ26jSwch
    aEBb2jXEZ26jSwch
    AXc5T3EoJU4cF4SV
    hOJggGj6NQFBqGp2

    • Switch-off the Laptop and remove the battery.

    • The HDD/Memory Cover is held by 3x Phillips screws. Remove them.

    • Remove the Cover.

  2. EedUTykFHQiWWBNA
    EedUTykFHQiWWBNA
    HwVOShkJxRKKMa6t
    gyVSLYqJmV3CelcB

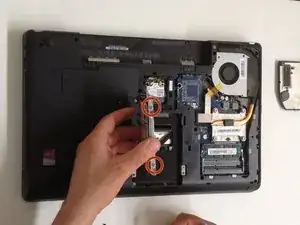

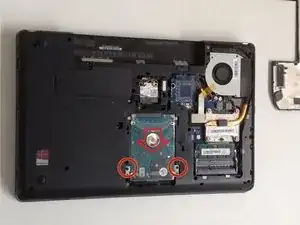

    • There are 2 x philips screws, securing the HDD Caddy Case. Remove them and slide the HDD to disconnect it from the SATA Connector.

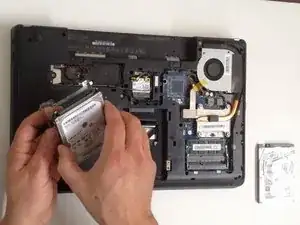

    • The Caddy Case is held to the HDD by 4x Phillips screws. Remove them and separate the HDD from the case.

    • After installing the new HDD you must install a new OS or clone your old HDD.

    • You can install SATA HDD, 2.5" up to 1TB.

    • Did you do it successfully?

Abschluss

To reassemble your device, follow these instructions in reverse order.
