Lenovo ThinkPad Edge E530 Wi-Fi Half Mini PCIe Card Replacement

Geschrieben von: ZFix
  • Kommentare: 0
Lenovo ThinkPad Edge E530 Wi-Fi Half Mini PCIe Card Replacement

Schwierigkeitsgrad

Easy

Schritte

2

Zeitaufwand

5 - 10 Minuten

Einleitung

How to replace the WLan card on Lenovo ThinkPad Edge E530, E530c.

_________________________________________________

  1. aEBb2jXEZ26jSwch
    aEBb2jXEZ26jSwch
    AXc5T3EoJU4cF4SV
    hOJggGj6NQFBqGp2

    • Switch-off the Laptop and remove the battery.

    • The HDD/Memory Cover is held by 3x Phillips screws. Remove them.

    • Remove the Cover.

  2. sPxwWhZtYRuLWEjv
    sPxwWhZtYRuLWEjv
    MgXTuojmDbQUh5td

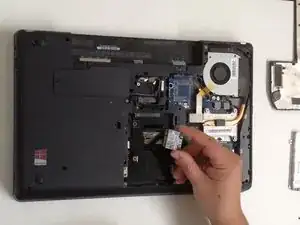

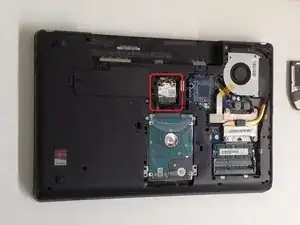

    • The Wi-Fi card is held by one Phillips screw. Remove it and disconnect the two coaxial antenna cables (WLan and Bluetooth).

    • Remove the Wi-Fi card.

Abschluss

To reassemble your device, follow these instructions in reverse order.
