Lenovo ThinkPad Helix Battery Replacement

Geschrieben von: Manuel Parra Rocha
  • Kommentare: 1
Lenovo ThinkPad Helix Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

20 - 30 Minuten

Einleitung

This guide provides information on how to replace a Lenovo ThinkPad Helix battery.

Replacing a battery is essential to keep your device on and running for use. When following these steps remeber to maintain a safe work space and a place to store screws that way you do not lose anything.

Lenovo adds that; “Use only the authorized battery specified for your tablet. Any other battery could ignite or explode.” This is essential to keep you and your device safe, intact and usable.

  1. tYntPpqdBfyp1TZ2

    • Using a plastic opening tool or opening pick, gently pry the screen off.

    • If possible, use plastic tools to pry the screen, as the metal tool as shown in the image can potentially damage your device.

    • You will need to use a little bit of force to pry it open. There is little indent that goes around the tablet. You will insert your tool between this indent and pry it open.

    • Once you're able to lift a little bit of the screen away from the tablet, work your way around until screen is separated from tablet. Stop for step two.

  2. wu2xmWUOrsnqr2Co
    wu2xmWUOrsnqr2Co
    hIaQpvTRmXMHYakj
    XrIiwUdeyZBOZTVD

    • Lift the screen up slowly.

    • Once separated, you can not fully take it off due to some cable connections.

    • Open the clips of the ZIF connectors and gently grab the cable to pull it out.

  3. 6LyatAZQDixQsnEi

    • Once the cables are disconnected, remove the screen.

  4. Uq2JCIXSKSO6HaId

    • Using a Phillips #00 screwdriver, unscrew the four nylon-coated 3 mm screws holding the battery in place.

  5. ydXSwmPSculHFxVg
    ydXSwmPSculHFxVg
    bDKkqyubkIgLYTkL

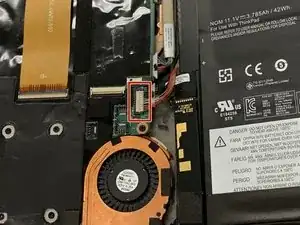

    • Disconnect the battery cable from the motherboard.

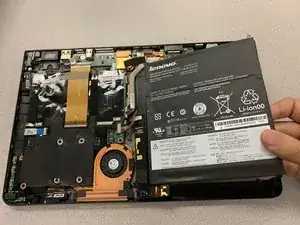

    • Lift the battery out of the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
