Lenovo ThinkPad Helix Screen Replacement

Geschrieben von: Manuel Parra Rocha
  • Kommentare: 0
Lenovo ThinkPad Helix Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

20 - 30 Minuten

Einleitung

This guide will provide information on how to replace a Lenovo Think Pad Helix screen. Be sure to have a clean and large enough workspace to properly replace the screen. Mind you to replace almost all the hardware on ThinkPad Helix you have to take off the screen. So learning how to properly take off the screen will help future replacements.

  1. tYntPpqdBfyp1TZ2

    • Using a plastic opening tool or opening pick, gently pry the screen off.

    • If possible, use plastic tools to pry the screen, as the metal tool as shown in the image can potentially damage your device.

    • You will need to use a little bit of force to pry it open. There is little indent that goes around the tablet. You will insert your tool between this indent and pry it open.

    • Once you're able to lift a little bit of the screen away from the tablet, work your way around until screen is separated from tablet. Stop for step two.

  2. wu2xmWUOrsnqr2Co
    wu2xmWUOrsnqr2Co
    hIaQpvTRmXMHYakj
    XrIiwUdeyZBOZTVD

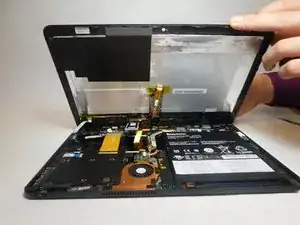

    • Lift the screen up slowly.

    • Once separated, you can not fully take it off due to some cable connections.

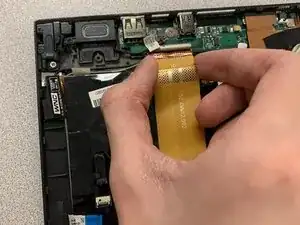

    • Open the clips of the ZIF connectors and gently grab the cable to pull it out.

  3. 6LyatAZQDixQsnEi

    • Once the cables are disconnected, remove the screen.

Abschluss

To reassemble your device, follow these instructions in reverse order.
